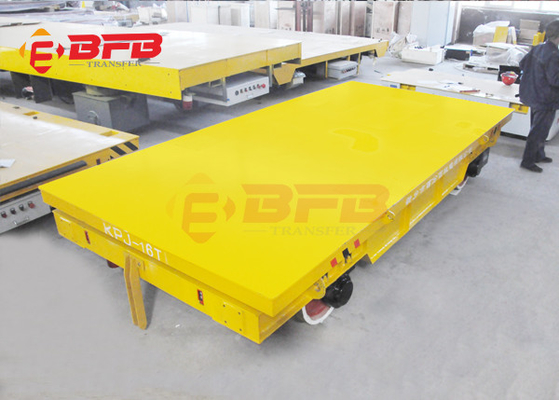

SGS 16 Ton Cable Drum Motorised Rail Trolley For Steel Plant

Place of Origin Xinxiang City, Henan Province
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPJ-1-500t
Packaging Details The transfer trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Load Capacity 1-500T
Car Size Customized Exported Countries Singapore, Australia, South Africa, Mexico
Color Yellow, Red, Blue, Gray, Customized Application Industrial Field
Power Supply Spring Cable Drum Power Operation Type Hand Pendant+Radio Control
Warranty 12 Months Port Qingdao/Tianjin/Shanghai
Running Speed 0-20m/min Motor AC Motor
High Light

Cable Drum Motorised Rail Trolley

,

16T Motorised Rail Trolley

,

Radio Control Motorized Transfer Trolley

Leave a Message
Product Description

16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant



1. About BEFANBY Product



I. Working principle:The cable drum powered transfer trolley are powered by spring cable drums which installed at the bottom of the trolleys or one side of the trolley. The one side of AC 380V cable is connected with the power source and the other side is linked to the motor. The cable is wound around cable drum.

II. Main parts: Trolley frame, Trolley wheels, AC motor, Gear Reducer, Cable drum, Cable arranger, Electrical control box,Hand-held pendant, Remote Control, Alarm Light





16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant

16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant

16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant



III. Product Manufacturing Processing



BEFANBY promise that quality is always the first concern, and BEFANBY specially set up a quality inspection department. Every time we complete a transfer trolley, we must carry out strict quality control, including the appearance of electric transfer trolley, the operation of electric transfer trolley, etc.

16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant



IV. Operation Instructions:

1. Before using for the first time, check whether all electrical connecting screws are loose. if they are loose, please press them tightly.

2. close the main circuit breaker q0, then close the circuit breakers f301 and f303.

3. operation of flashlight: place the selection switch s40 at the position of flashlight. press the s11 start button, at this time, the main contactor k0 is closed and connected, but the remote control and ground operation are invalid. if it is necessary to stop the machine, press s21. at this time, press the forward and backward buttons of the flashlight door, and the flat car can move forward and backward.

4. ground operation: place the selection switch s40 in the ground operation position. press s12 start button, at this time, the main contactor k0 is closed and connected, but the remote control and hand switch operation are invalid. if it is necessary to stop the machine, press s22. at this time, press the forward and backward buttons of the ground operation panel to move forward and backward.

5. remote control operation: put the first selection switch s40 in the remote control operation position. press s13 start button, at this time, the main contactor k0 is closed and connected, but at this time, the ground operation and hand switch operation are invalid. if it is necessary to stop the machine, press s23. at this time, press the forward and backward buttons of the remote control panel to move forward and backward.

6. adjustment of starting torque, adjusting the time of time relay k401, k402 and k403, lengthening the time of relay can slow down the starting torque. reducing the time of the relay can increase the starting torque, but at this time the impact of the flat car is relatively large.

7. emergency stop: in any mode of operation, if it cannot be stopped in operation, the stop key must be pressed immediately.



V. Technical parameter



  Model KPJ 6T KPJ-50T KPJ-150T
  Rated Load(t) 6T 50T 150T
  Table Size(mm) 3500*2000*550 5500*2500*700 10000*3000*1200
  Wheel Base(mm) 2600 4200 7000
  Rail Gauge(mm) 1435 1435 2000
  Wheel Diameter(mm) 300 500 600
  Wheel Quantity 4 4 8
  Ground Clearance(mm) 50 50 75
  Running Speed(m/min) 20 20 20
  Motor Power 1.5 5.5 15
  Max Wheel Load(KN) 25.8 174 265.2
  Reference Weight(t) 3.5 7.8 26.2
  Recommended Rail Model P18 P43 QU100



If you are interrested in our product, pls contact us.

Thank you very much, and have a good time!



16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant
