25 Ton Steel Plate Electric Track Rail Transfer Cart 20m/Min Running

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPD
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The track electric cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Q235 Running Speed 0-20m/min
Running Distance According To Customers'demand Warranty 18 Months
Load Capacity 1-1000T Application Industrial Field, Steel Plate Transfer,workshop Handler
Port Qingdao/Tianjin/Shanghai Color Customized
Power Supply Low Voltage Rail Powered Operation Type Hand Pendent + Remote Control
Rail And Wheel Insulated Material Will Be Added
High Light

Electric Track Rail Transfer Cart


Steel Plate Rail Transfer Cart


25 Ton Rail Transfer Cart

Leave a Message
Product Description

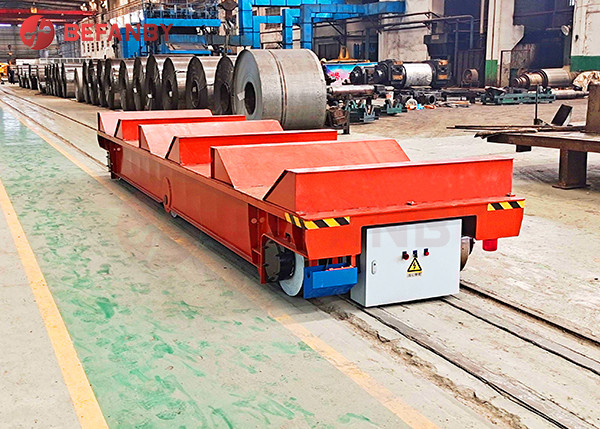

25 Ton Steel Plate Transfer Track Electric Cart Manufacturer

1. Product Introduce


Steel plate transfer track electric cart. the driving behavior on the track is limited. in order to solve these problems, Befanby has developed non-standard vehicles such as turntables, turning vehicles, and shuttle vehicles to assist in the use. industrial track electric carts are powered by kpx battery, kpd low-voltage rail power supply, kpj cable reel power supply and kpc trolley line power supply; the track laying requirements of rail flat cars need to be appropriately based on power supply and factory conditions, such as low voltage rail power supply requires insulation treatment; high temperature resistance treatment is required under high temperature conditions. in addition, the customization of tras needs to be customized according to the specific needs of users, and the size of the design needs to be calculated by the technicians for the load.


Befanby rail powered transfer track electric carts not only have sold across the country, but also exported to us, malaysia, thailand, netherlands, south africa, syria, turkey, singapore etc.


our company have professional team and utilize more advanced technique to design and develope it , and it has been a long year to manufacture it attentively. simutaneously, it will be more easy and flexible.simple structure and low cost make it popular for workshop transportation.


Intelligent safety control system for an electric driven track electric cart is disclosed. the power supply is sent to the track after depressurization by a low-voltage power supply device. the boost power supply device on the track transfer cart takes power from the track and boosts it. the high-voltage power is sent to the track transfer cart motor by a driving device.



Please contact us if you's like to learn more details and get the quotation.


BEFANBY have over 16 years' experience in the material handling fields.


25 Ton Steel Plate Transfer Track Electric Cart Manufacturer25 Ton Steel Plate Transfer Track Electric Cart Manufacturer25 Ton Steel Plate Transfer Track Electric Cart Manufacturer


2. Application

1. All kinds of coils (V-Groove Deck)

2. Tanks (Size/Stability For Uniformly Distributed Loads)

3. Assemblies (Fixture Cradle) For A Complete Build Or To Send A Partially Completed Product To The Next Station (Tractors, Heavy Equipment Machinery)

4. Sub-Assembly Shuttle From One Line To Another Line

5. Maintenance Cart For Motors And Pumps

6. Equipment Support (Stand-Off Deck) For Navigating Loads To Locations With A Plant Facility

7. Material Shuttle For Steel Tubing (Flat Decking With Guard Rails)

8. Elevating Platform For Assembly Process (Integrated Screw-Jack Table)

9. Sand Casting (Flat Decking)

10. Mold Transportation

25 Ton Steel Plate Transfer Track Electric Cart Manufacturer25 Ton Steel Plate Transfer Track Electric Cart Manufacturer

25 Ton Steel Plate Transfer Track Electric Cart Manufacturer



Welcome to inquiry us if you'd like to learn more

3. Technique Parameter
KPD series is a railway transfer trolley material handling equipment used in warehouses; KPX series is a battery electric motorized rail platform transfer trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered electric rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.
Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50
