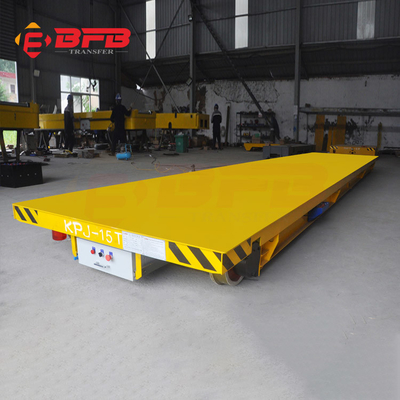

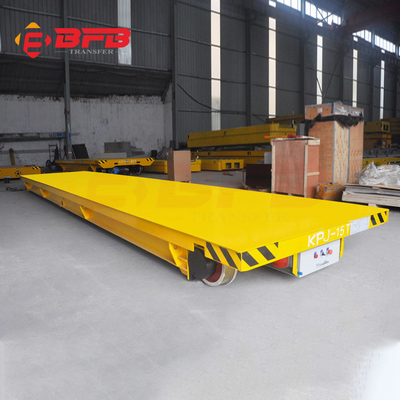

20m/Min Workshop Motorized Rail Transfer Car 500T Load
| Place of Origin | Xinxiang City, Henan Province |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPJ-1-1500t |
| Minimum Order Quantity | 1 set/sets |
| Packaging Details | The transfer trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Load Capacity | 1-500T |
|---|---|---|---|
| Car Size | Customized | Exported Countries | Singapore, Australia, South Africa, Mexico |
| Color | Yellow, Red, Blue, Gray, Customized | Application | Industrial Field |
| Power Supply | Spring Cable Drum Power | Operation Type | Hand Pendant+Radio Control |
| Warranty | 24 Months | Port | Qingdao/Tianjin/Shanghai |
| Running Speed | 0-20m/min | Motor | AC Motor |
| High Light | 20m/Min Motorized Rail Transfer Car,Rail Transfer Car 500T Load,AC380V Rail Transfer Car |
||
Product Description
Heavy Load Workshop Transfer Locomotive Rail Cart Manufacturer
1. About BEFANBY Product
I. Working principle:The locomotive rail carts are powered by spring cable drums which installed at the bottom of the carts or one side of the cart. The one side of AC 380V cables are connected with the power source and the other side is linked to the motor. The cable is wound around cable drum.
II. Main parts: cart frame, Trolley wheels, AC motor, Gear Reducer, Cable drum, Cable arranger, Electrical control box,Hand-held pendant, Remote Control, Alarm Light
III. Product Manufacturing Processing
BEFANBY promise that quality is always the first concern, and BEFANBY specially set up a quality inspection department. Every time we complete a transfer trolley, we must carry out strict quality control, including the appearance of electric transfer trolley, the operation of electric transfer trolley, etc.
IV. Running Attention:
the protection circuit of electric transfer car is not only related to the speed regulation performance of the whole system, but also directly related to the safety of vehicles and operators. perfect system protection can extend the service life of system hardware and greatly improve the reliability and safety of the system. therefore, the design of system circuit should be considered carefully. the signal input of hall current sensor is mainly used for signal sampling and judgment. when the motor has short circuit or locked rotor, it will produce interruption, stop the command output, turn off the pulse output, and the drive circuit will stop working. wait for the system to return to normal and then restart. this can greatly protect the safety of the motor and transfer car circuit, and ensure that the electric transfer car will not have serious accidents.
V. Technical parameter
| Model | KPJ 6T | KPJ-50T | KPJ-150T | |
| Rated Load(t) | 6T | 50T | 150T | |
| Table Size(mm) | 3500*2000*550 | 5500*2500*700 | 10000*3000*1200 | |
| Wheel Base(mm) | 2600 | 4200 | 7000 | |
| Rail Gauge(mm) | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | 300 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 75 | |
| Running Speed(m/min) | 20 | 20 | 20 | |
| Motor Power | 1.5 | 5.5 | 15 | |
| Max Wheel Load(KN) | 25.8 | 174 | 265.2 | |
| Reference Weight(t) | 3.5 | 7.8 | 26.2 | |
| Recommended Rail Model | P18 | P43 | QU100 |
If you are interrested in our product, pls contact us.
Thank you very much, and have a good time!
2. BEFANBY Company
|
Our customers from all over ther world, and BEFANBY product has exported to Thailand, Australia, Malaysia, Singapore, UAE, Saudi Arabia, South Korea, Mexico, etc.
|
