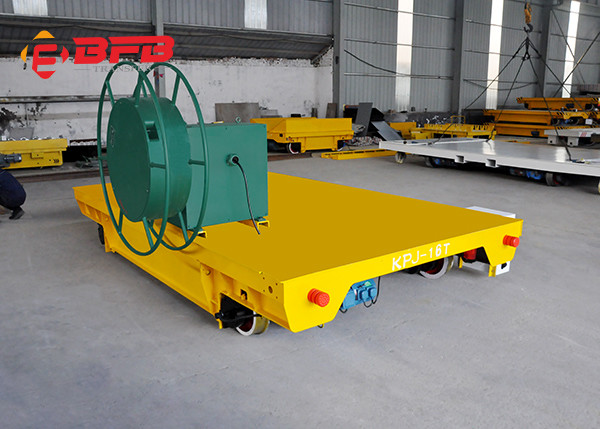

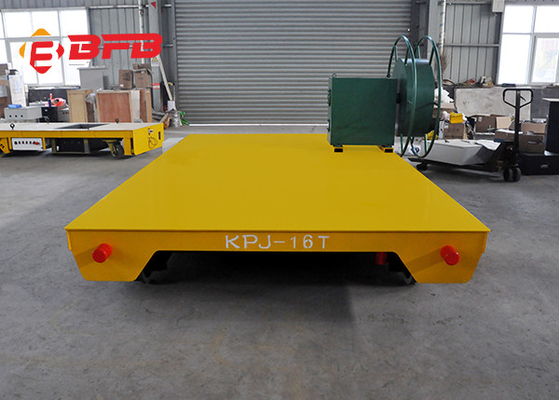

Cable Reels Motorized Transfer Trolley 500T Load For Plant Handling

Place of Origin Xinxiang City, Henan Province
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPJ-1-1500t
Minimum Order Quantity 1 set/sets
Packaging Details The transfer trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Load Capacity 1-1500T
Car Size Customized Exported Countries Singapore, Australia, South Africa, Mexico
Color Yellow, Red, Blue, Gray, Customized Application Industrial Field
Power Supply Spring Cable Reel Power Operation Type Hand Pendant+Radio Control
Warranty 24 Months Port Qingdao/Tianjin/Shanghai
Running Speed 0-20m/min Motor AC Motor
High Light

Cable Reels Motorized Transfer Trolley

,

Plant Handling Motorized Transfer Trolley

,

500T Load Motorized Transfer Trolley

Leave a Message
Product Description

Hot Sale Cable Reels Transfer Cart For Plant Handling



1. About BEFANBY Product



I. Working principle:The cable reels transfer carts are powered by spring cable drums which installed at the bottom of the carts or one side of the cart. The one side of AC 380V cables are connected with the power source and the other side is linked to the motor. The cable is wound around cable drum.

II. Main parts: cart  frame, Trolley wheels, AC motor, Gear Reducer, Cable drum, Cable arranger, Electrical control box,Hand-held pendant, Remote Control, Alarm Light





Heavy Load Workshop Transfer Locomotive Rail Carts Manufacturer



III. Product Manufacturing Processing



BEFANBY promise that quality is always the first concern, and BEFANBY specially set up a quality inspection department. Every time we complete a transfer trolley, we must carry out strict quality control, including the appearance of electric transfer trolley, the operation of electric transfer trolley, etc.

Heavy Load Workshop Transfer Locomotive Rail Cart Manufacturer



IV. Application:

The cable reels transfer carts are widely used in ring assembly line, warehouse transportation, workshop workpiece transportation, lathe transportation, mold transportation, steel plate distribution, building materials transportation and other metallurgical industry, machinery manufacturing, steel plant, construction, shipbuilding industry, petroleum, energy, chemical industry, railway, etc. the ferry car is divided into two parts.the platform transport is widely used in metallurgy, machinery manufacturing, heavy industry manufacturing, mold manufacturing, steel plate distribution, building materials handling, etc.



V. Technical parameter



  Model KPJ 6T KPJ-50T KPJ-150T
  Rated Load(t) 6T 50T 150T
  Table Size(mm) 3500*2000*550 5500*2500*700 10000*3000*1200
  Wheel Base(mm) 2600 4200 7000
  Rail Gauge(mm) 1435 1435 2000
  Wheel Diameter(mm) 300 500 600
  Wheel Quantity 4 4 8
  Ground Clearance(mm) 50 50 75
  Running Speed(m/min) 20 20 20
  Motor Power 1.5 5.5 15
  Max Wheel Load(KN) 25.8 174 265.2
  Reference Weight(t) 3.5 7.8 26.2
  Recommended Rail Model P18 P43 QU100



If you are interrested in our product, pls contact us.

Thank you very much, and have a good time!
