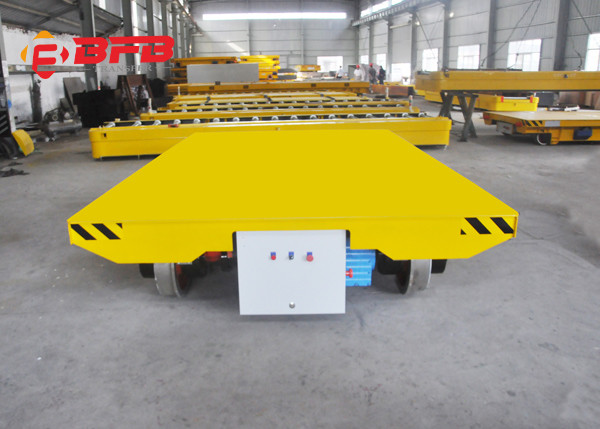

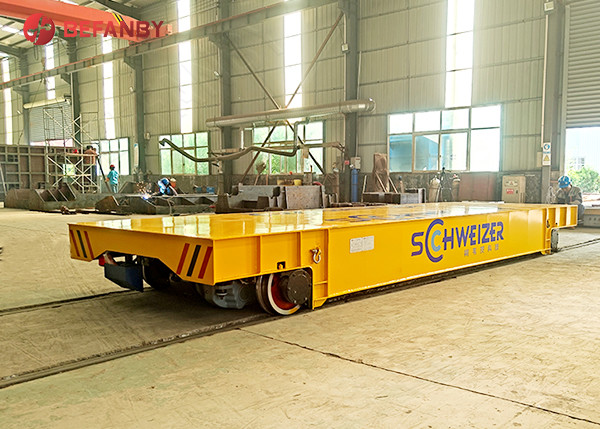

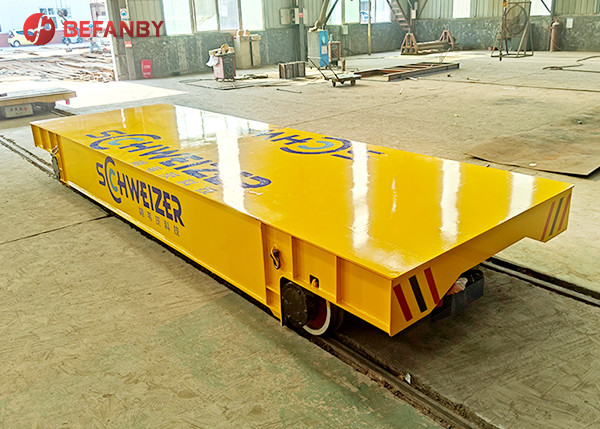

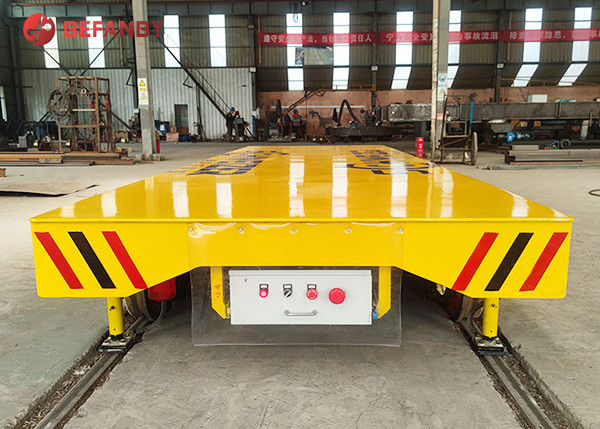

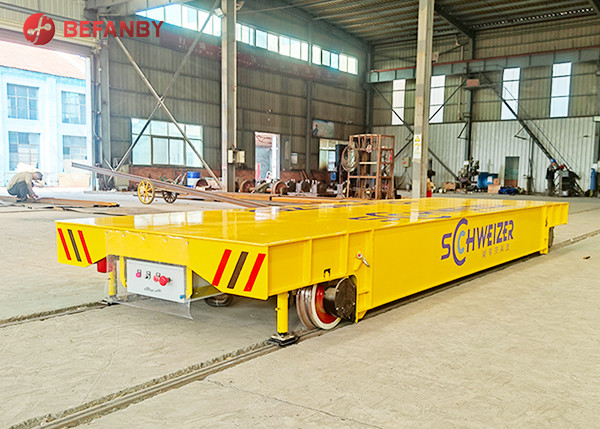

Heat Resisting Ladle Furnace Battery Operated Transfer Trolley With Turning On Rails
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The ladle furnace trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Running Distance | According To Customers'demand | Warranty | 18 Months |
| Load Capacity | 1-1000T | Application | Industrial Field, Ladle Furnace Trolley Transportation |
| Port | Qingdao/Tianjin/Shanghai | Color | Customized |
| Power Supply | Low Voltage Rail Powered | Operation Type | Hand Pendent + Remote Control |
| Special Design | Heat Resisting | ||
| High Light | heat resisting battery operated transfer trolley,turning rails battery operated transfer trolley,ladle furnace rail transfer trolley |
||
Product Description
Heat Resisting Ladle Furnace Trolley With Turning On Rails
1. Product Introduce
|
Befanby rail power ladle furnace trolley not only have sold across the country, but also exported to usa, malaysia, bangladesh, thailand, netherlands, south africa, turkey, singapore etc.
The ladle furnace trolley wuth turning on rails 1. Electric control system of rail transfer trolley: equipped with advanced electronic controller to maximize the power supply time and service life of lithium battery. 2. The power system of the rail transfer trolley: It adopts the most advanced high-load and high-performance AC motor in China to ensure excellent anti-overload capability and good power output. 3. Power supply system for rail transfer trolleys: low voltage rails, without cable, it can be used in with high using frequency with no limited distance.
|
2. Application
|
1. All kinds of rollers (V-Groove Deck) 2. Tanks (Size/Stability For Uniformly Distributed Loads) 3. Assemblies lines (Fixture Cradle) For A Complete Build Or To Send A Partially Completed Product To The Next Station (Tractors, Heavy Equipment Machinery) 4. Sub-Assembly Shuttle From One Line To Another Line 5. Maintenance Cart For Motors And Pumps 6. Equipment Support (Stand-Off Deck) For Navigating Loads To Locations With A Plant Facility 7. Material Shuttle For Steel Tubing (Flat Decking With Guard Rails) 8. Elevating Platform For Assembly Process (Integrated Screw-Jack Table) 9. Sand blasting (Flat Decking) 10. Mold Transfer |
f
|
Please contact us if you's like to learn more details and get offer to us.
BEFANBY have over 20 years' experience in the material handling fields. |
Welcome to inquiry us if you'd like to learn more
3. Technique Parameter
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
