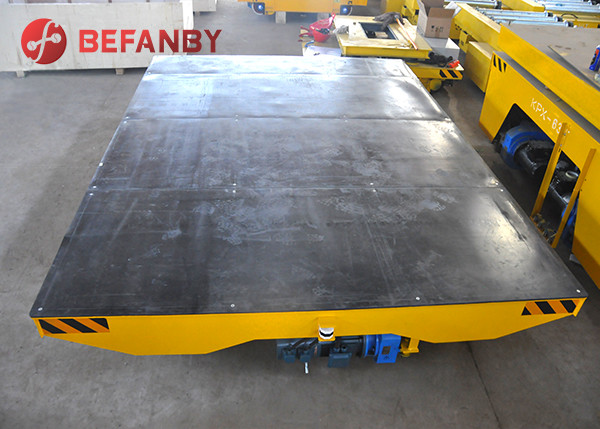

Retractable Cable Transfer Car For Steel Mill handling

Place of Origin Henan,China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number KPT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Low Cost Retractable Cable Transfer Car For Steel Mill Designer Power Supply Retractable Cable Transfer
Running Distance According To Customers' Demand Running Speed 0-20m/min
Color Yellow; Red; Blue, Gray, Etc. Load Capacity 1-1500T, Customized Manufacture
Warranty 24 Months Operation Type Hand Pendant + Remote Control
Application Steel Mill Handling
High Light

Electric Retractable Cable Transfer Cart


Retractable Motorized Rail Cart


Cable Motorized Transfer Trolley

Leave a Message
Product Description
Low Cost Retractable Cable Transfer Car For Steel Mill Designer


The cable transfer car on rails uses 380v ac power supply. in order to prevent the cable from being damaged when it is stressed, the hysteresis coupling type is generally used, which can automatedly release when it is tight.  in order to make the electric flat car more stable and safe, the ground step-down transformer is generally used to control the voltage, so as to ensure the stability and safety of operation. in order not to hinder the transportation, the cable reel of the electric flat car is generally special, which is not only high in safety, but also good in heat resistance. the combination of these equipment has become the most advanced electric flat car, which can transport 1-500 tons of goods in various working environments. for the transfer trolley powered by kpd cable reel, the operation mode is generally through the main motor direct power supply and traction to realize the operation of the flat car. for the disadvantage of short running distance, the improved kpz electric flat car can completely solve this problem. through the on-board rectifier device, the single-phase on the track can be changed into three-phase, and the aging phenomenon can be eliminated, even in the case of under voltage, it can work well.


the cable transfer car is applied in a steel factory to transfer heavy steel or aluminum coils. in order to avoid the round  material falling down from the transfer bogie, we designed a v-frame. it can protect the coils' security. we can recommend you the direction of the v-frame according to the coils.

it is also used to transfer heavy material between workshops, such as large steel parts, large motors, etc.

the transfer car is usually used for ship assembling and ship maintenance. due to the components of the ship being heavy and huge, they need a suitable plant transfer bogie to handle and transfer. the carrying capacity of our electric cable transfer cart ranges from 1-500 tons.

it is also can be used in metallurgy for ladle and hot slag transfer for the advantage of stable start and high-temperature proof.

Low Cost Retractable Cable Transfer Car For Steel Mill Designer

Low Cost Retractable Cable Transfer Car For Steel Mill Designer


Low Cost Retractable Cable Transfer Car For Steel Mill Designer

Technique Parameter
Model KPT-2t KPT-5t KPT-10t KPT-16t KPT-20t KPT-25t KPT-30t KPT-40t KPT-50t KPT-63t KPT-80t KPT-100t KPT-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
Processing Line

Low Cost Retractable Cable Transfer Car For Steel Mill Designer

Packing & Delivery

Low Cost Retractable Cable Transfer Car For Steel Mill Designer

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
