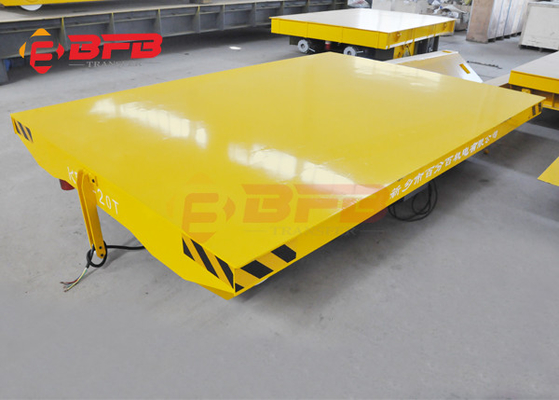

Steel Sand Blasting Motorized Transfer Trolley Workshop Frame Type
| Place of Origin | Xinxiang City, Henan Province |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPJ-1-500t |
| Minimum Order Quantity | 1 set/sets |
| Price | $3000-6000/Per Set |
| Packaging Details | The transfer trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Load Capacity | Customized Capacity |
|---|---|---|---|
| Trolleyr Size | Customized Table Size | Exported Countries | Singapore, Australia, South Africa, Mexico |
| Color | Yellow, Red, Blue, Gray, Customized | Application | Industrial Field, Sand Blasting Transfer |
| Power Supply | Cable Drum Powered | Operation Type | Hand Pendant+Remote Control |
| Warranty | 12 Months | Port | Qingdao/Tianjin/Shanghai |
| Running Speed | 0-20m/min | Motor | AC Motor Driven |
| Highlight | Steel Motorized Transfer Cart,Workshop Frame Rail Transfer Trolley,Blasting Motorized Transfer Trolley |
||
Product Description
Workshop Frame Type Sand Blasting Rail Trolley For Sale
1. About BEFANBY Product
I. Working principle:The sand blasting rail trolley are powered by spring cable reels which generally installed at the bottom of the trolleys or one side of the trolleys if the table size required smaller. The one side of AC 380V cable is connected with the power source and the other side is linked to the motor. The cable is wound around cable drum.
II. Main parts: trolley frame, rail wheels, AC motor, Gear Reducer, Cable drum, Cable arranger, Electrical control box,Hand-held pendant, Remote Control, Alarm Light
III. Product Manufacturing Processing
BEFANBY promise that quality is always the first things for us, and BEFANBY specially set up a quality inspection department. Every time we complete a set transfer trolley, we must carry out strict quality control, including the appearance of electric transfer trolley, the operation of electric transfer trolley, etc.
IV. Technical parameter
| Model | KPJ 6T | KPJ-50T | KPJ-150T | |
| Rated Load(t) | 6T | 50T | 150T | |
| Table Size(mm) | 3500*2000*550 | 5500*2500*700 | 10000*3000*1200 | |
| Wheel Base(mm) | 2600 | 4200 | 7000 | |
| Rail Gauge(mm) | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | 300 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 75 | |
| Running Speed(m/min) | 20 | 20 | 20 | |
| Motor Power | 1.5 | 5.5 | 15 | |
| Max Wheel Load(KN) | 25.8 | 174 | 265.2 | |
| Reference Weight(t) | 3.5 | 7.8 | 26.2 | |
| Recommended Rail Model | P18 | P43 | QU100 |
If you are interrested in our product, pls contact us.
Thank you very much, and have a good time!
2. BEFANBY Company
|
Our customers from all over ther world, and BEFANBY product has exported to Thailand, Australia, Malaysia, Singapore, UAE, Saudi Arabia, South Korea, Mexico, etc.
|
