10t Electric Powered Rail Cart For Pipe Packages Handling
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The 10t rail car will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Running Distance | According To Customers'demand | Warranty | 18 Months |
| Load Capacity | 1-1000T | Application | Industrial Field, Pipe Package Handling |
| Port | Qingdao/Tianjin/Shanghai | Color | Customized |
| Power Supply | Low Voltage Rail Power, Electric Powered | Operation Type | Hand Pendent + Remote Control |
| Rail And Wheel | Insulated Material Will Be Added | ||
| Highlight | Rail Material Transfer Carts,Pipe Electric Transport Trolley,10t Motorized Transfer Cart |
||
Product Description

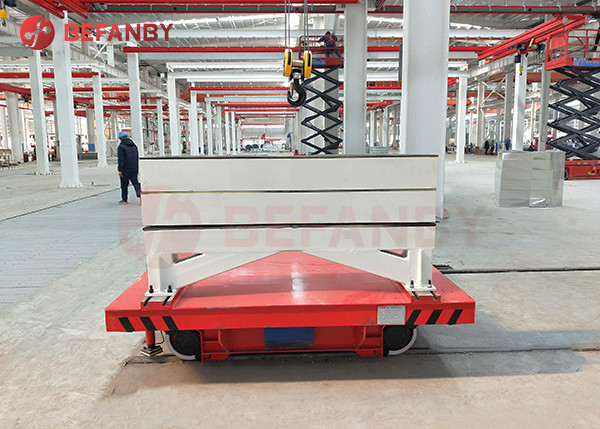

Electric Powered 10t Rail Car For Pipe Packages Handling
1. Product Introduce
BEFANBY electric powered 10t rail car is powered by low voltage electricity from railways, the kind of rail car is one of the most convenient material handling tool and it often can be widely used in the industry field and so on. Of course,compared other transfer trolley,it main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the 10t rail cars have, why we design is that its convenient (only rails needed) and its simple operation.
About BEFANBY, Our rail transfer car not only have sold across the country, but also exported to US, Malaysia, Thailand, Peru, South Africa, Turkey, Singapore, Nepal etc. There are more than 150 employees including 10 senior engineers, 15 engineers, 25 technicians, the employees accepted higher education including postgraduate, undergraduate, junior colleague student occupied 80%. Our company passed ISO9001 Quality management system and got the CE, ISO, SGS certificate.
|
Please contact us if you's like to learn more details and get the quotation.
BEFANBY have over 16 years' experience in the material handling fields. |
2. Working Principle
BEFANBY electric powered 10t rail car, the power source AC380v is transformed into AC36v two-phase and are respectively connected to the two rails.Then the rail cars conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.
4. Technique Parameter
KPD series is a low-voltage power supply without towing cable electric transfer trolley; KPX series is a battery electric motorized rail platform transfer trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered electric rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
