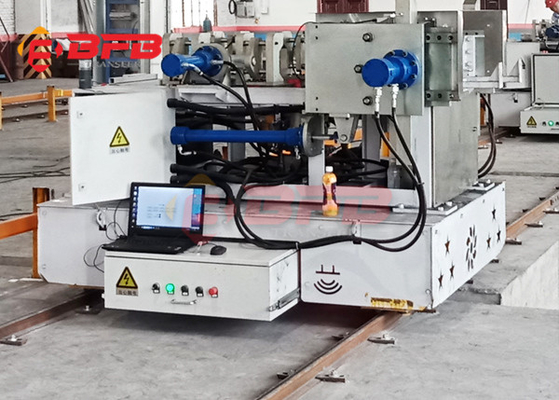

Curved Track Rail power Platform Transfer Trolley 2 Ton

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPD
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The track platform trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 set/sets per year
Product Details
Material Q235 Warranty 18 Months
Load Capacity 1-1500T Application Industrial Field, Curved Track Turning
Port Qingdao/Tianjin/Shanghai Color Customized Color, Yellow, Gray, Red, Blue.
Power Supply Low Voltage Rail Power Operation Type Hand Pendent + Remote Control
High Light

Curved Track Platform Transfer Trolley

,

Rail Platform Transfer Trolley

,

Platform Rail Transfer Cart 2 Ton

Leave a Message
Product Description
Curved Track Platform Transfer Trolley 2 Ton Designer


1. Product Introduce



BEFANBY custom manufacture curved track transfer trolley 2 tons is powered by low voltage electricity from rails, the kind of platform transfer trolley is one of the most convenient and durable material handling equipment and it often can be widely used in the industrial field and so on. Of course,compared other transfer trolley,its main features as it follows,its steel rails is isulated with the ground, and its rail wheels are isulated with the ground, so doesn't others.it is the advantage that the platform transfer trolley have, why we design is that its convenient (only rails needed) and its simple operation.



About BEFANBY, Our platform transfer trolley not only have sold across the country, but also exported to Canada, Malaysia, Thailand, Singapore, South Africa, etc. There are more than 150 employees including 10 senior engineers, 15 engineers, 25 technicians, the employees accepted higher education including postgraduate, undergraduate, junior colleague student occupied 80%. BEFANBY company passed ISO9001 Quality management system and got the CE, ISO9001, SGS certificate. Meanwhile, we also got 40 national patents which are S type rail turning cart utility model patent, S type rail turning cart appearance patent, rail electric forklift utility patent, etc.



Please contact us if you's like to learn more details and get the quotation.



BEFANBY have over 16 years' experience in the material handling fields.






2. Working Principle


BEFANBY platform transfer trolley, the power source AC380v is transformed into AC36v two-phase and are respectively connected to the two rails.Then the transfer trolleys' wheels conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.

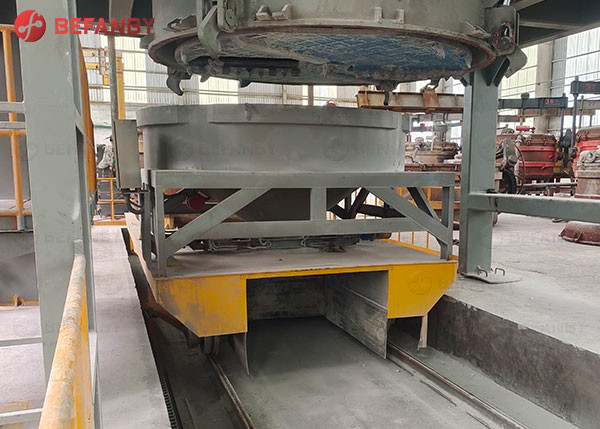

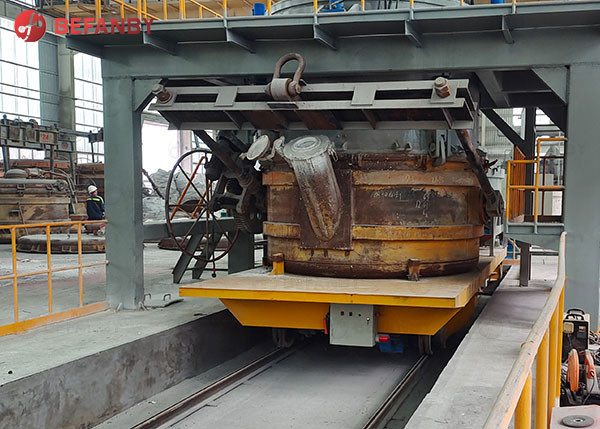

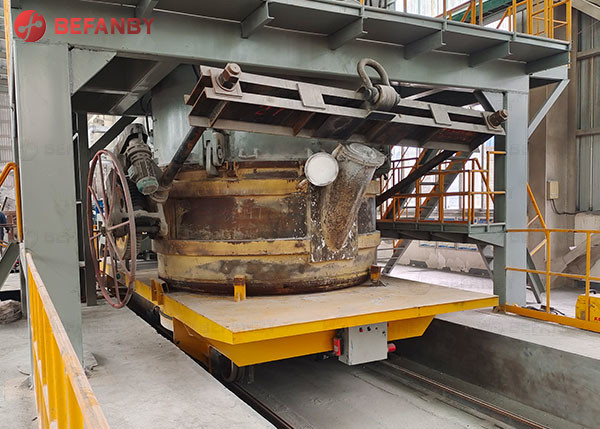

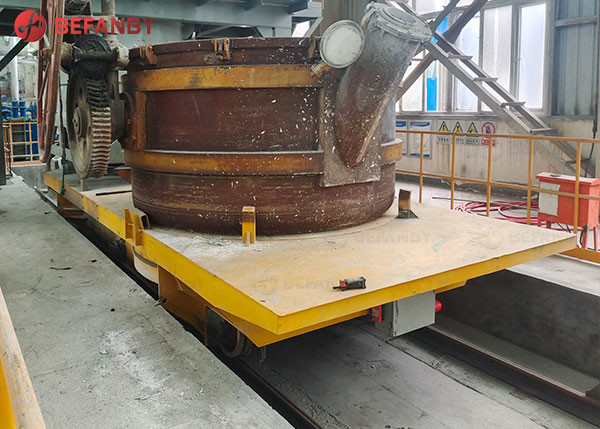

2 tons platform transfer trolley2 tons turning rail platform transfer trolley2 tons curved track platform transfer trolley

Curved Track Platform Transfer Trolley 2 Ton Designer



Curved Track Platform Transfer Trolley 2 Ton Designer




3. Technique Parameter

Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50
