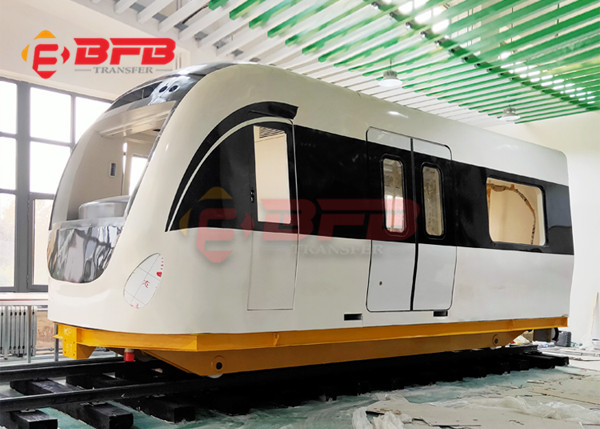

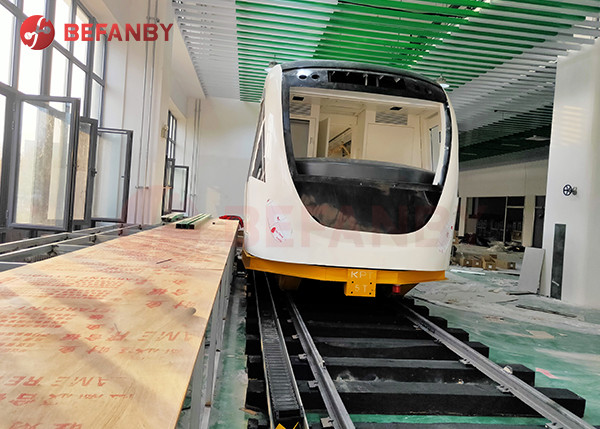

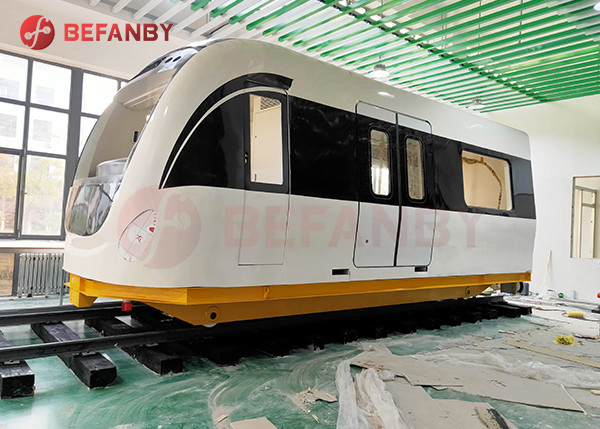

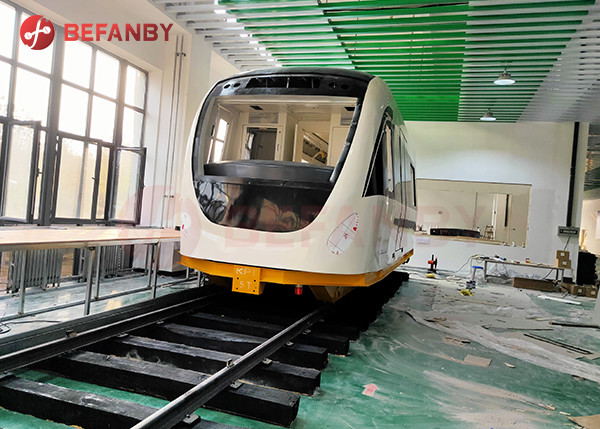

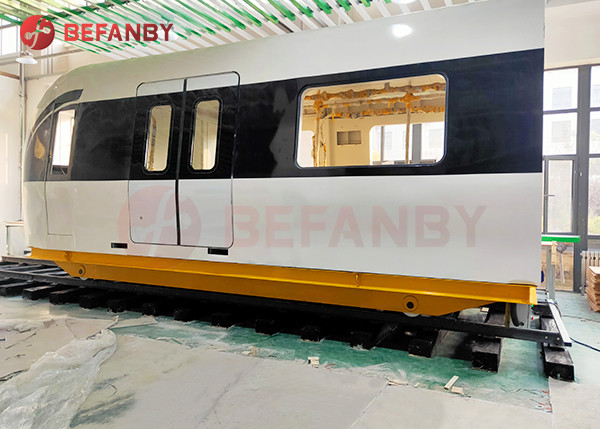

15t Battery Powered Transfer Cart For Sand Casting Room
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE, SGS, ISO9001 |
| Model Number | KPT |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Power Supply | Mobile Cable, Customized Power Supply |
|---|---|---|---|
| Running Distance | According To Customers' Demand | Running Speed | 0-20m/min |
| Color | Customized | Load Capacity | 1-1500T |
| Warranty | 12 Months | Application | Industrial Field |
| High Light | 15t Battery Powered Transfer Cart,Sand Casting Room Electric Powered Cart,Q235 Industrial Electric Transfer Cart |
||
Product Description
15t Powered Rail Trolley For Sand Casting Room
Brief Introduction
Due to the heavy weight of the workpiece and the need to enter the sandblasting room, the sandblasting room cannot be entered by driving, so a rail flat car is used. Due to the large dust in the sandblasting environment, the flat car needs to be protected. The hollow box girder structure design is adopted to make it more efficient. Good for sandblasting environment.
Working Principle
KPT series' mobile cable rail trolley----it conducts AC380v directly into the electrical control system of the transfer cart to start, stop, go forward backforward and so on.The cart is powered by dragged cable which is laid on the ground. the cable line is placed between the two rails. The operation system is low voltage 36v power.
Character Showing
- Anti-explosion
- Heat-resist
- Safe devices are installed
- Customization can be supported
- China Made
- High Quality
- Low cost
- No limitation of time
- Simple structure
- High frequency
- No strict requirement of rails
- Easy abrasion for cable
- Need dig trench,impair the ground
- The cart is suitable to use in short distance(<=20m), low cart's height
Technique Parameter
| Model | KPT-2t | KPT-5t | KPT-10t | KPT-16t | KPT-20t | KPT-25t | KPT-30t | KPT-40t | KPT-50t | KPT-63t | KPT-80t | KPT-100t | KPT-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | 800 | 850 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 2.3 | 3.3 | 3.8 | 5 | 5.5 | 6 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
