Rail Transfer Heavy Duty 3000kg Electric Trailer Mover
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD |
| Minimum Order Quantity | 1 set/sets |
| Packaging Details | The electric track transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 30-40 days as usual delivery,20-30days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Warranty | 18 Months | Load Capacity | 1-1500T |
| Application | Industrial Field, Workshop Ferry | Power Supply | Low Voltage Rail Powered |
| Operation Type | Hand Pendent + Remote Control | Rail And Wheel | Insulated Material Will Be Added |
| Keywords | Heavy Duty 3000kg Electric Trailer Mover | ||
| High Light | 3000kg Electric Trailer Mover,Rail Transfer Electric Trailer Mover,Q235 Heavy Duty Rail Transfer Cart |
||
Product Description

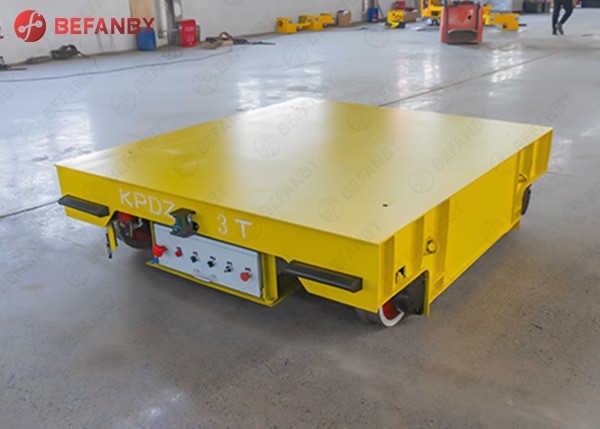

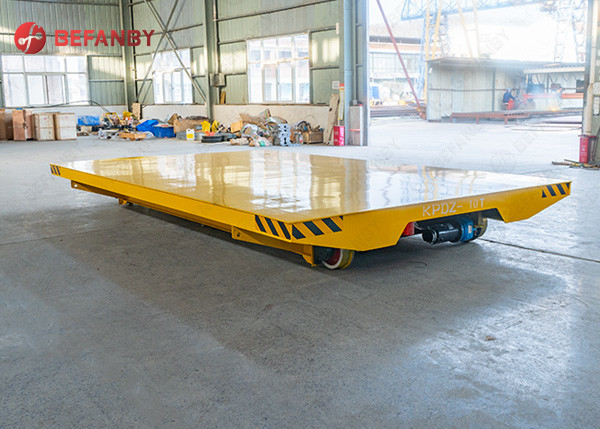

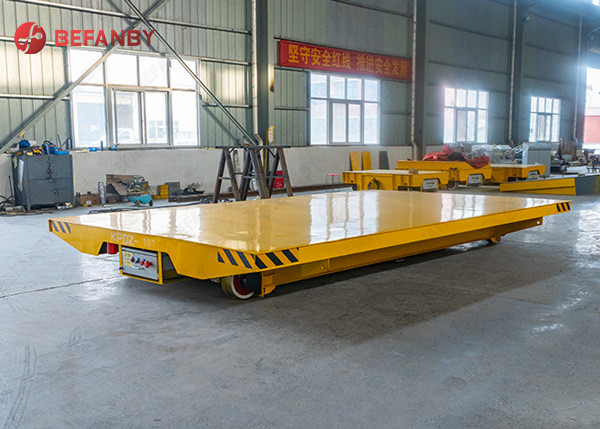

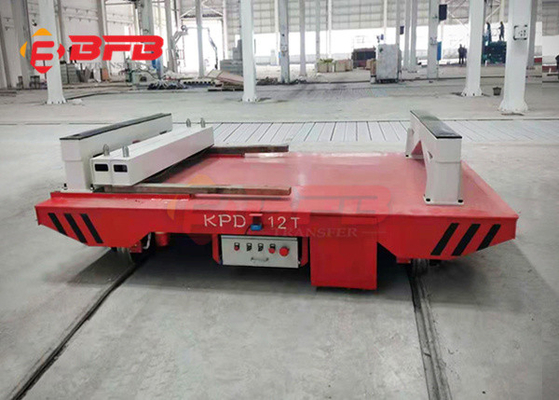

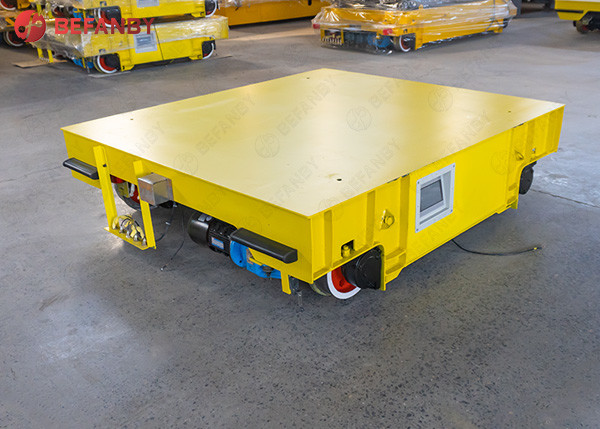

Rail Transfer Heavy Duty 3000kg Electric Trailer Mover
1. Product Introduce
The rail transfer heavy duty 3000kg electric trailer mover is powered by the low-voltage rail, and it needs to lay tracks in the workplace, and the transfer cart runs on the track. The wheels of the electric transfer trolley are cast steel and are insulated. Insulated cast steel wheels effectively guarantee the safety of operators. The cart can run on a straight track or an arc track, and the turning arc of the cart can be customized according to customer needs. The maximum load capacity of the flat cart reaches 1500 tons, and the body structure is made of thickened steel plate, which is not easy to deform.
We are a manufacturer of electric transfer vehicles in China, and can provide transfer vehicle manufacturing services worldwide. We have over 20 years of experience in electric transfer cart design.
f
2. Befanby Material Handling Equipment Introduce
3. Technique Parameter
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
4.Company Profile
Welcome to contact us for more material handling solution!
