Track Mounted Warehouse Battery High Load Transfer Cart Lift
Place of Origin | Henan,China |
---|---|
Brand Name | BEFANBY |
Certification | CE,SGS,ISO9001 |
Model Number | KPX |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
Delivery Time | 40-50 days as usual delivery,30-40 days for urgent delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Customized | Application | Warehouse,steel Factory,shipbuilding |
---|---|---|---|
Running Speed | 0-20m/min | Warranty | 12 Months |
Lifting Height | Customized | Load Capacity | 1-1500T |
Operation Type | Hand Pendant + Remoete Control | Power Supply | Battery Powered |
High Light | Steel Warehouse Battery Transfer Cart,1500T Hydraulic Lifting Transfer Cart,20m/min Track Mounted Transfer Cart |
Track Mounted Warehouse Battery High Load Transfer Cart Lift

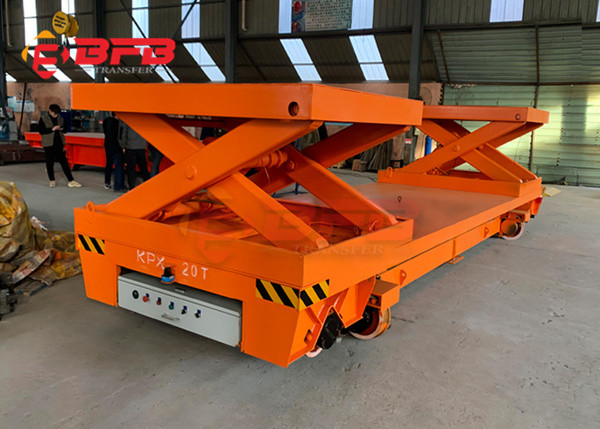

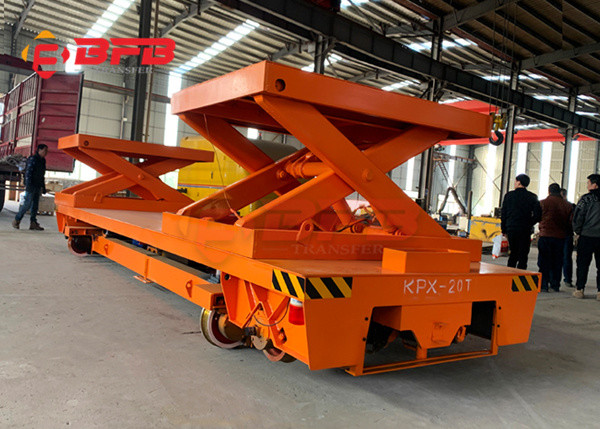

Track mounted warehouse battery high load transfer cart lift is equipped with scissor type hydraulic lifting device, thickened steel plate structure, strong bearing capacity. The hydraulic device is very smooth when working, no matter rising or falling, there will be no phenomenon of stalling. Battery transfer cart run on rails, so the rails need to be laid well in advance. Electric transfer trolley to transport goods to the designated working point by lifting to meet the handling requirements.
Our transfer cart can be made into various types, such as lift, roller table, ladle transfer, U shape and so on. We have professional and technical personnel to design the program, fully able to meet the customer's handling requirements.

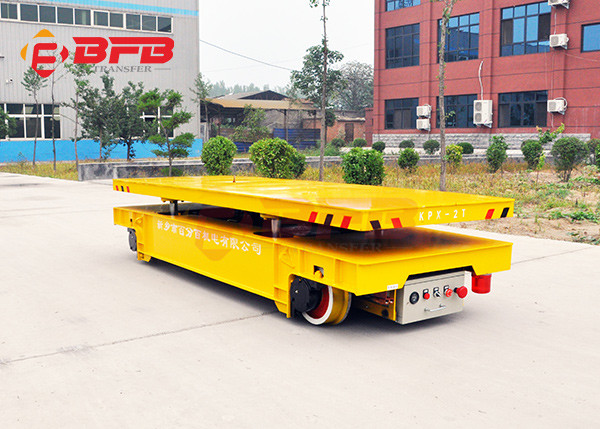

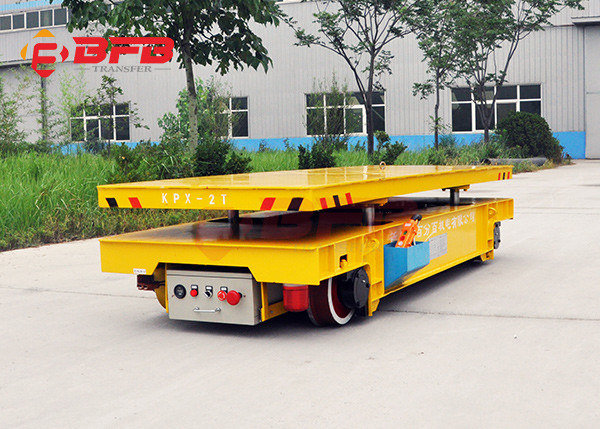

2. Details Showing
3. Advantage
Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
Motor Power | 1 | 1.2 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
Battery Capacity | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
5. Delivery
