Steerable Trackless 30t Scissor Lift Transfer Cart

  • Steerable Trackless 30t Scissor Lift Transfer Cart
  • Steerable Trackless 30t Scissor Lift Transfer Cart
  • Steerable Trackless 30t Scissor Lift Transfer Cart
  • Steerable Trackless 30t Scissor Lift Transfer Cart
  • Steerable Trackless 30t Scissor Lift Transfer Cart
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number BWP
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40 days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Customized Application Warehouse,steel Factory,shipbuilding
Running Speed 0-20m/min Warranty 12 Months
Lifting Height Customized Load Capacity 1-1500T
Operation Type Hand Pendant + Remoete Control Power Supply Battery Powered
High Light

Scissor Lift Transfer Cart

,

Steerable Trackless Hydraulic Lifting Transfer Cart

,

30t Steerable Transfer Cart
Leave a Message
Product Description

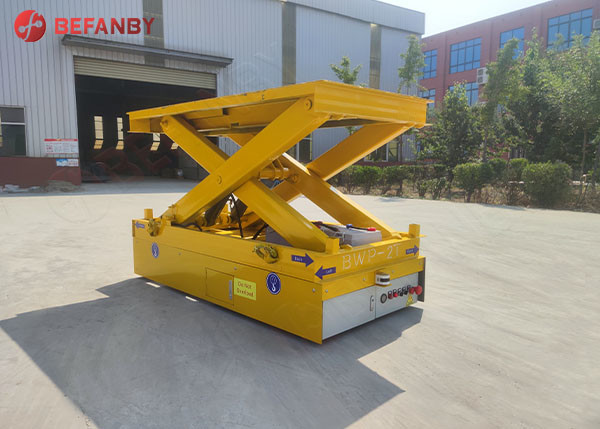

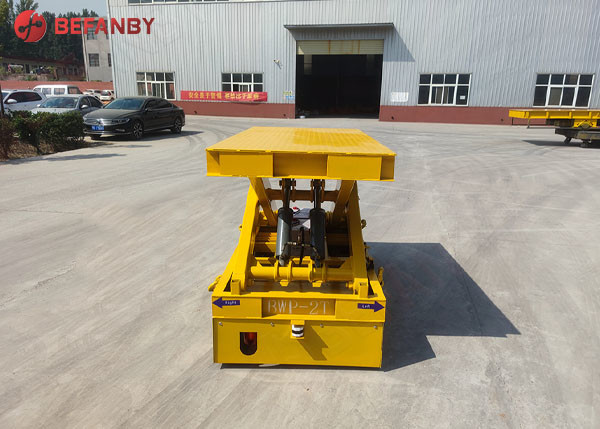

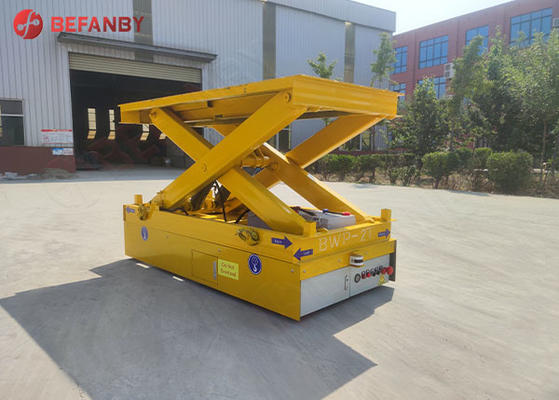

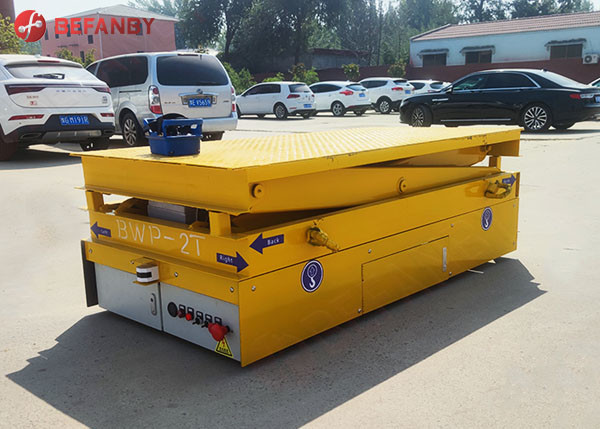

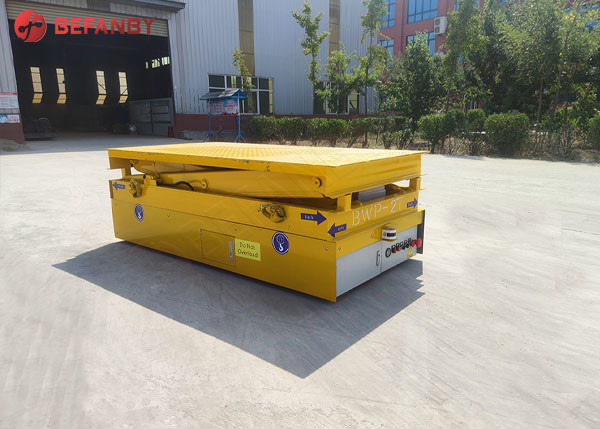

Steerable Trackless 30t Scissor Lift Transfer Cart


1. Product Introduction

Steerable trackless 30t scissor lift transfer cart is one of our best-selling products. This scissor lift transfer trolley is equipped with hydraulic lifting device, which can change the height of the lifting table through the hydraulic cylinder. Hydraulic lift electric flat car is often used in ports, factories, heavy industry, etc.

This lift electric transfer cart can run directly on hard ground such as concrete, without laying track or being restricted by track. Batteries provide power for flat cars. Due to the flexible running path of the transfer cart, so we have installed safety protection devices for the lift cart, when the sensor detects obstacles or workers, it will automatically stop.

Our hydraulic lifting device bearing capacity is strong, lifting flexibility, can be customized lifting height according to customer needs.


Steerable Trackless 30t Scissor Lift Transfer Cart
Electric Scissor Lift Transfer Trolley
hydraulic transfer flatbed car




2. Details Showing



track transfer lift cart


3. Advantage



battery transfer electric cart lift

4. Technique Parameter
Model BWP-2T BWP-5T BWP-10T BWP-15T BWP-20T BWP-25T BWP-30T BWP-40T BWP-50T BWP-60T BWP-70T BWP-80T BWP-100
Rated load(t) 2 5 10 15 20 25 30 40 50 60 70 80 100
Table Size Length(L) 2000 2200 2300 2400 2400 3500 3500 5000 5500 5600 6000 6500 6600
Width(W) 1500 2000 2000 2100 2200 2200 2200 2500 2600 2500 2600 2800 3000
Heigth(H) 450 500 550 600 600 700 700 800 800 850 900 950 1200
Wheel Base(mm) 1080 1650 1650 1600 1650 1650 1650 2000 2000 1800 1850 1950 2000
Axle Base(mm) 1380 1680 1700 1830 1850 2700 2700 3600 2850 2900 3500 3500 4000
Wheel Dia.(mm) Φ250 Φ300 Φ350 Φ400 Φ400 Φ450 Φ450 Φ500 Φ600 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 6 6 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(kw) 2*1.2 2*1.5 2*2.2 2*3.5 2*4.5 2*5.5 2*5.5 2*6.3 2*7.5 2*10 2*12 30 40
Batter Capacity(Ah) 250 180 250 330 400 400 450 440 500 600 600 800 1000
Battery Voltage(V) 24 48 48 48 48 48 48 72 72 72 72 72 72
Running Time When Full Load 2.5 2.88 2.8 2.3 2.2 1.8 2 2.6 2.5 2.2 1.8 2 1.9
Running Distance for One Charge(Km) 3 3.5 3.4 2.8 2.7 2.2 2.4 3.2 3 2.7 2.2 2.4 2.3
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 152 185 190
Reference Wight(t) 2.3 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8




5. Delivery



heavy duty transfer lift flatbed cart
6. Company Profile

20 ton battery operated lift car

15 ton battery transfer car

5 ton electric lift trolley
