Electrical Lift Steerable Hydraulic Transfer Trolley

  • Electrical Lift Steerable Hydraulic Transfer Trolley
  • Electrical Lift Steerable Hydraulic Transfer Trolley
  • Electrical Lift Steerable Hydraulic Transfer Trolley
  • Electrical Lift Steerable Hydraulic Transfer Trolley
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number BWP
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40 days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Customized Application Warehouse,steel Factory,shipbuilding
Running Speed 0-20m/min Warranty 12 Months
Lifting Height Customized Load Capacity 1-1500T
Operation Type Hand Pendant + Remoete Control Power Supply Battery Powered
High Light

Steerable Hydraulic Transfer Trolley

,

Electrical Lift Hydraulic Transfer Trolley

,

Multifunctional Hydraulic Lifting Transfer Cart
Leave a Message
Product Description

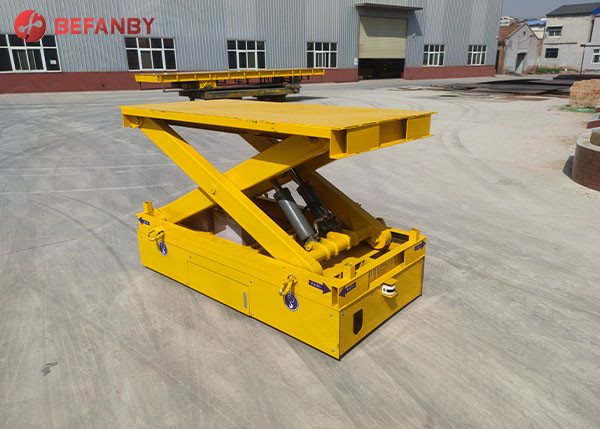

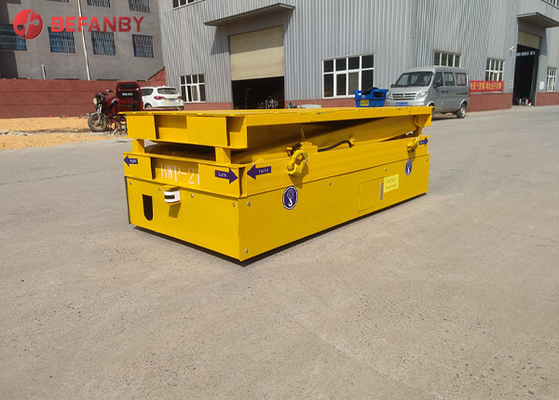

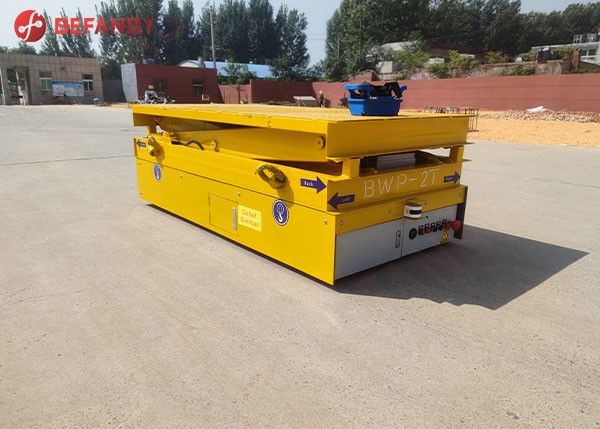

Electrical Lift Steerable Hydraulic Transfer Trolley


1. Product Introduction

The electrical lift steerable hydraulic transfer trolley is a kind of multifunctional lifting and unloading machinery, with a hydraulic lifting platform system, a variety of structures, such as shear fork structure, fixed hydraulic column structure, is conducive to improving the stability of the platform lifting. Expanding the table size is conducive to improving the bearing capacity. Easy to operate and lift freely.



The trackless transfer cart can be operated by remote control, with large operation area and flexible turning. Steerable transfer trolley can transport goods to the designated production line or work place.



Two lift transfer cart can lift the work at the same time or separately. The height of the hydraulic lift electric flat car can be designed according to the size provided by customers.


Electrical Lift Steerable Hydraulic Transfer Trolley
30t scissor lift transfer cart
factory battery powered transfer trolley lift



2. Details Showing



track transfer lift cart


3. Advantage



rail battery transfer electric cart lift

4. Technique Parameter

Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 1 1.2 2 2.2 3 3.5 4 5 6.3 8 10 15 15
Battery Capacity 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage 24 36 48 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100





5. Delivery



warehouse battery transfer cart lift
6. Company Profile

20 ton battery operated lift car

15 ton battery transfer car

5 ton electric lift trolley
