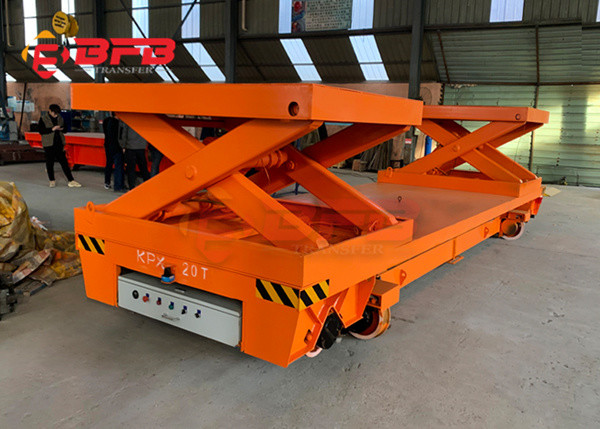

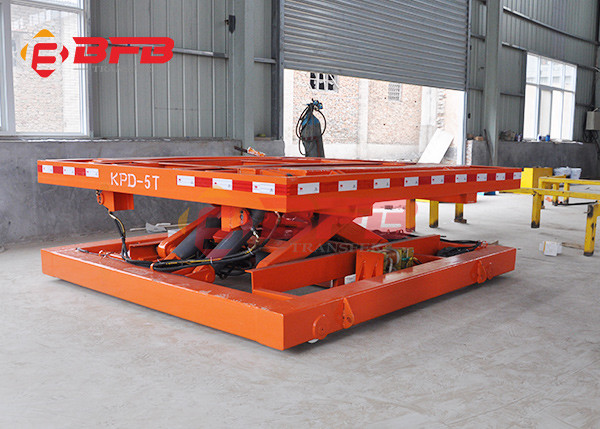

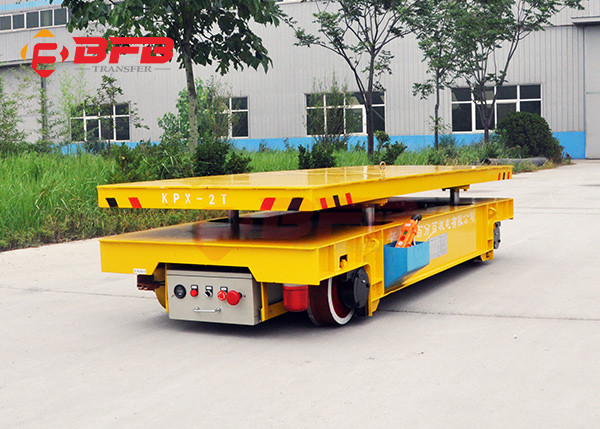

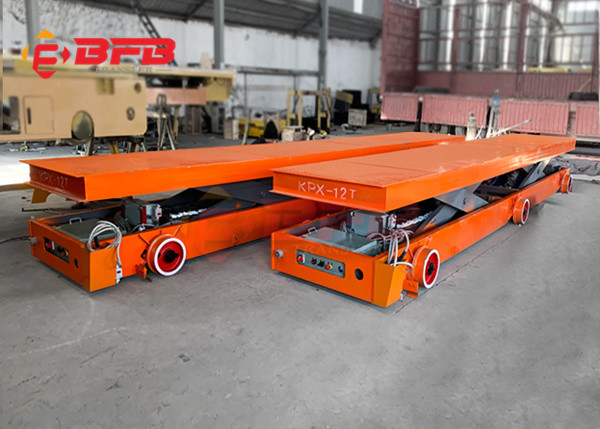

Electrical Heavy Duty Hydraulic Rail Transfer Flatbed Cart

  • Electrical Heavy Duty Hydraulic Rail Transfer Flatbed Cart
  • Electrical Heavy Duty Hydraulic Rail Transfer Flatbed Cart
  • Electrical Heavy Duty Hydraulic Rail Transfer Flatbed Cart
  • Electrical Heavy Duty Hydraulic Rail Transfer Flatbed Cart
  • Electrical Heavy Duty Hydraulic Rail Transfer Flatbed Cart
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40 days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Customized Application Warehouse,steel Factory,shipbuilding
Running Speed 0-20m/min Warranty 12 Months
Lifting Height Customized Load Capacity 1-1500T
Operation Type Hand Pendant + Remoete Control Power Supply Battery Powered
High Light

Hydraulic Rail Transfer Flatbed Cart

,

Flatbed Hydraulic Lifting Transfer Cart

,

Electrical Hydraulic Lifting Transfer Cart
Leave a Message
Product Description

Electrical Heavy Duty Hydraulic Rail Transfer Flatbed Car


1. Product Introduction

Heavy duty hydraulic rail transfer flatbed car is a handling equipment with a hydraulic lifting device, which can raise the height of the lifting plate through the hydraulic cylinder, and then the material is transported by the transmission belt to the designated assembly line or shelf.



Hydraulic lifting transfer cart is also a kind of multifunctional lifting and loading machinery and equipment. It has a hydraulic lifting platform system and has a variety of structures, such as scissor structure, fixed hydraulic column, etc., which is conducive to improving the platform lifting stability; expanding the operating platform is conducive to improving the carrying capacity.It is easy to operate and can be raised and lowered freely.The two sets transfer carts can lift the goods at the same time, or they can lift the workpiece separately.The height of the hydraulic lifting transfer cart can be designed according to the size provided by the customer.


Electrical Heavy Duty Hydraulic Rail Transfer Flatbed Carheavy duty hydraulic rail transfer carthydraulic rail transfer flatbed trolley



2. Details Showing



track transfer lift cart


3. Advantage



rail battery transfer electric cart lift

4. Technique Parameter

Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 1 1.2 2 2.2 3 3.5 4 5 6.3 8 10 15 15
Battery Capacity 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage 24 36 48 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100





5. Delivery



heavy duty hydraulic track transfer flatbed car
6. Company Profile

20 ton battery operated lift car

15 ton battery transfer car

5 ton electric lift trolley
