Electrical Vertical And Horizontal Movement Transfer Trolley
Place of Origin | Henan, China |
---|---|
Brand Name | BEFANBY |
Certification | CE,SGS,ISO9001 |
Model Number | KPD |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRunning Speed | 0-20m/min | Warranty | 18 Months |
---|---|---|---|
Load Capacity | 100 Tons | Application | Industrial, Factory,warehouse,workshop |
Port | Qingdao/Tianjin/Shanghai | Color | Customized |
Power Supply | Battery Power | Operation Type | Hand Pendent + Remote Control |
High Light | Electrical Horizontal Movement Transfer Trolley,Vertical Movement Transfer Trolley |

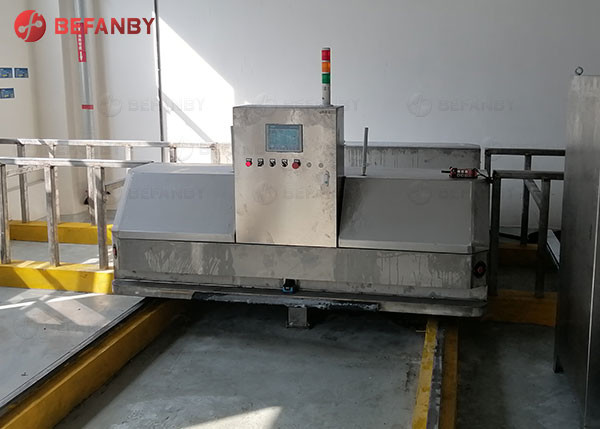

Electrical Vertical And Horizontal Movement Transfer Trolley
Product Description Of Vertical And Horizontal Movement Transfer Trolley
In modern industrial production, material handling and transportation is a very important link. In order to solve the problems of low efficiency and high work intensity of traditional manual handling, rail electric flat cars, as a brand-new material handling equipment, are being widely used.
1. Efficiency: The track electric flat car adopts electric drive and can transport materials at high speed and stability, which greatly improves the efficiency of material handling.
2. Flexibility: The track electric flat car can travel freely on the set track, and can realize vertical and horizontal movement of multiple tracks, and dispatch materials conveniently and quickly.

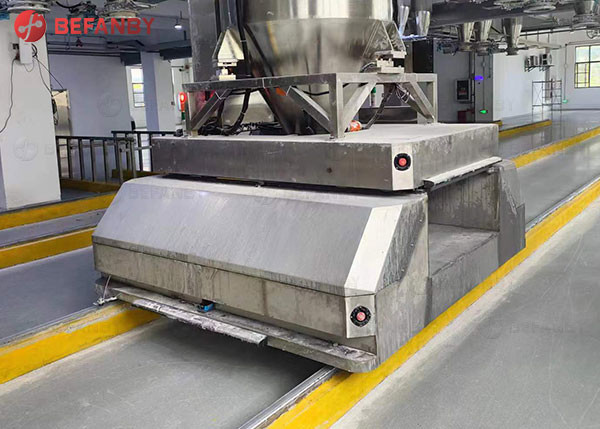

3. Multi-function: The rail electric flat car adopts an upper and lower two-layer design and can handle multiple batches of materials at the same time, providing more options for the company's material handling process.

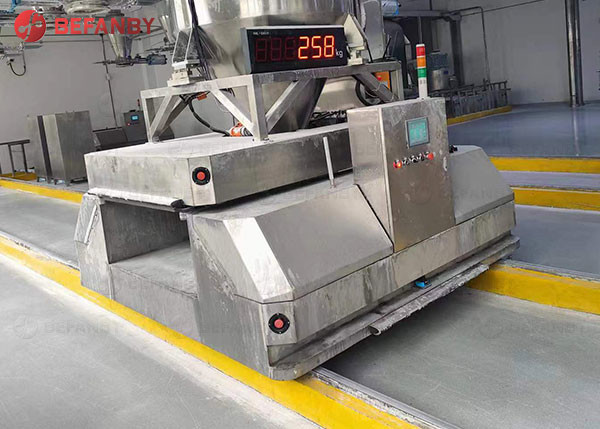

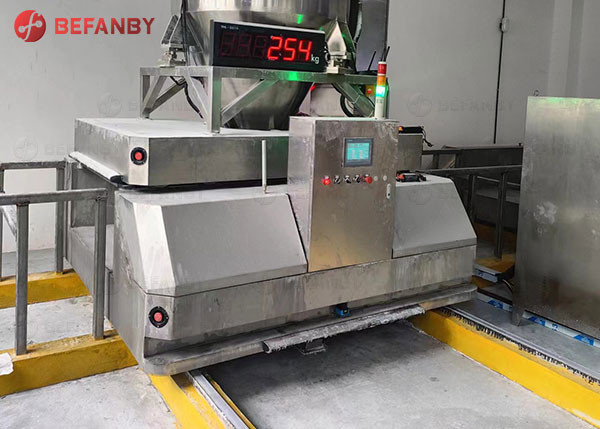

4. Intelligentization: The rail electric flat car is equipped with an electronic weighing display, which can display the weight of materials in real time, helping companies carry out accurate material handling measurement and improving the sophistication of production management.
Product details Of Vertical And Horizontal Movement Transfer Trolley
Product Parameter Of Workshop Flatbed Cart
Model | KPD-2T | KPD-5T | KPD-10T | KPD-16T | KPD-20T | KPD-25T | KPD-30T | KPD-40T | KPD-50T | KPD-63T | |
Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
Heigth(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
Rai lnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | |
Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Running Speed(mm) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
Motor Power(kw) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
Transformer | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
Transformer Quantity(个) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Running distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
Reference Wight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 |
