3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles

  • 3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles
  • 3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles
  • 3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles
  • 3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles
  • 3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number lift platform
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 20-30 days as usual delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Customized Warranty 24 Months
Load Capacity Customized Power Supply Battery Operated
Port Qingdao/Tianjin/Shanghai Application Factory,workshop,building Construction,cleaning Window
Materials Steel
Highlight

Folded Electric Table Lift

,

Hand Push Electric Table Lift

,

Mobile Electric Table Lift
Leave a Message
Product Description

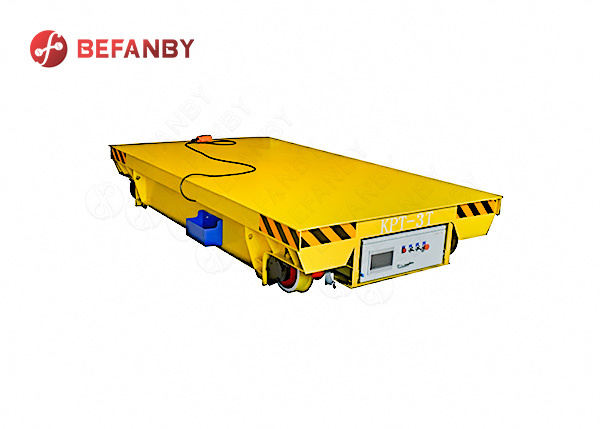

3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles

Product Description

The Mobile Drag Chain Rail Transporter is a highly efficient transport device that operates on fixed rails and utilizes a mobile drag chain power supply. It is suitable for material handling and production line integration within various factory environments, both indoors and outdoors.


The vehicle is constructed of welded high-strength steel plates, resulting in a sturdy and durable frame. The vehicle's load capacity and dimensions can be flexibly customized to suit different load capacities, platform sizes, and operating speeds. The mobile drag chain power supply system is located on the rails and moves with the vehicle. This provides stable power during operation, eliminating the need for frequent power changes and making it particularly suitable for long-distance, continuous operations.



3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles 0

Product Parameter


Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100


QU100


Product Feature

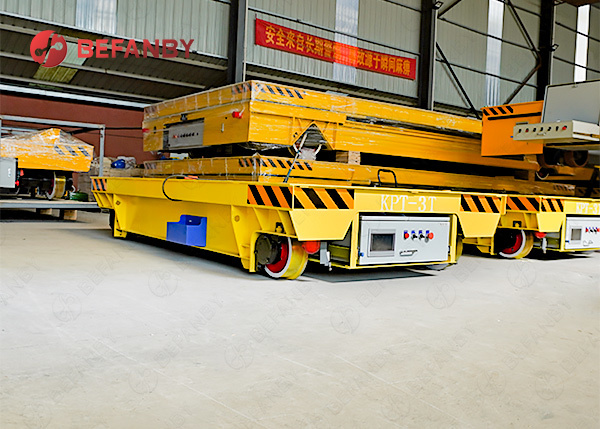

3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles 1

Products Details

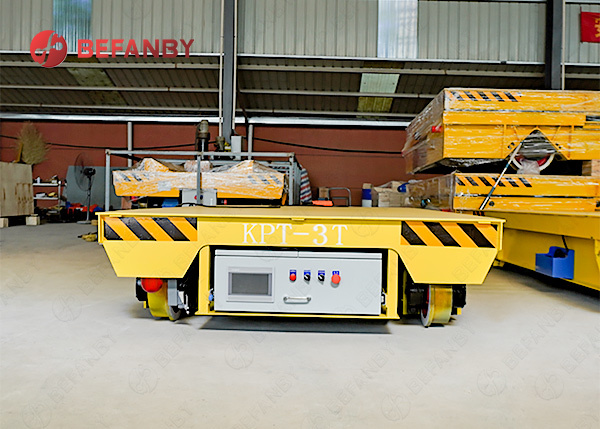

3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles 2

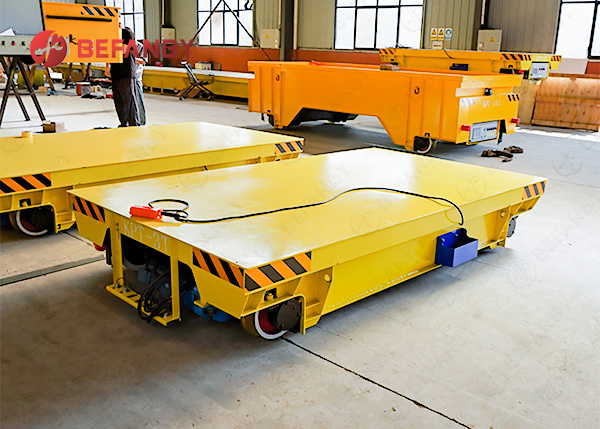

The vehicle boasts a sturdy structure and smooth operation. It can be equipped with a variety of transport mechanisms, including lifts, V-frames, and roller conveyors, meeting the handling needs of a wide range of materials, including steel pipes, coils, molds, and palletized cargo. Driven by an AC motor, it provides ample power and can be equipped with variable frequency speed regulation. Safety features include anti-collision cushioning on all sides, audible and visual alarms, and an emergency stop button, ensuring the safety of both personnel and materials during transport.

Shipping

3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles 3

Company Profile

3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles 4

3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles 5

3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles 6

Related Products

3 Tonne Electrical Rail-mounted Bogie System Transfer Vehicles 7

FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
