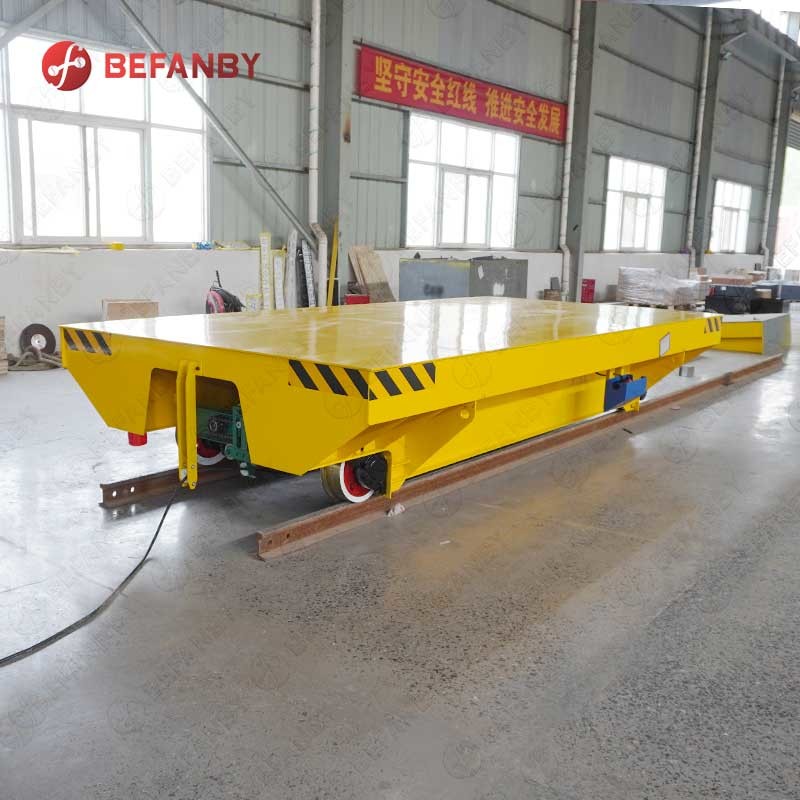

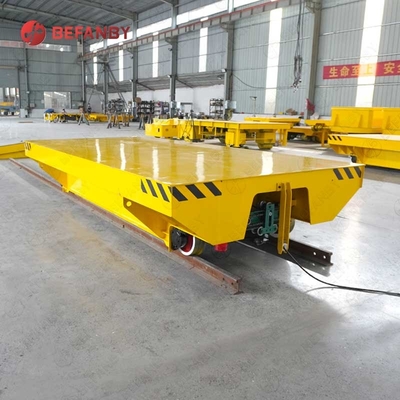

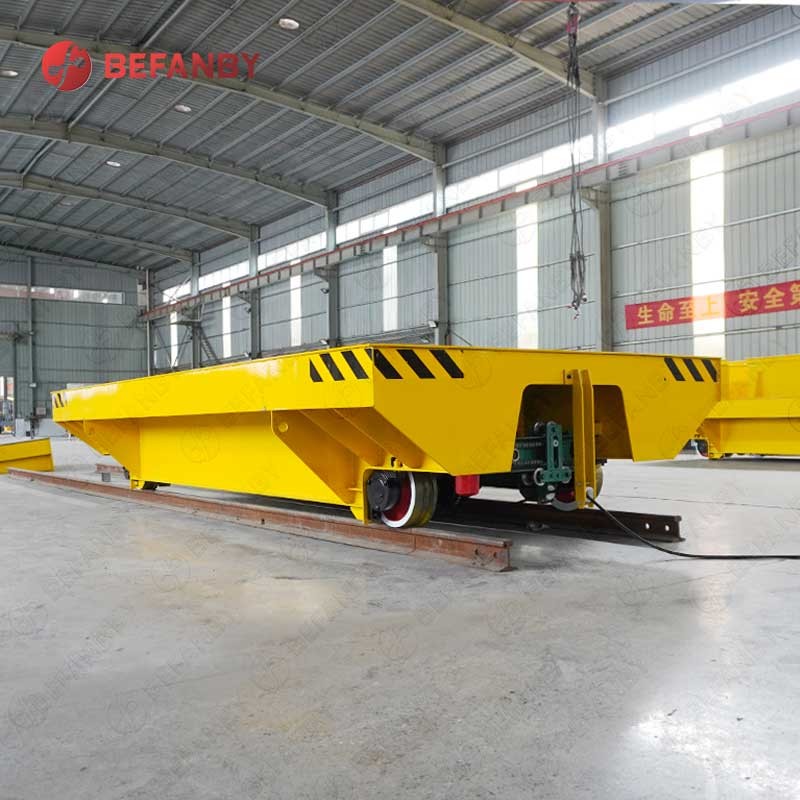

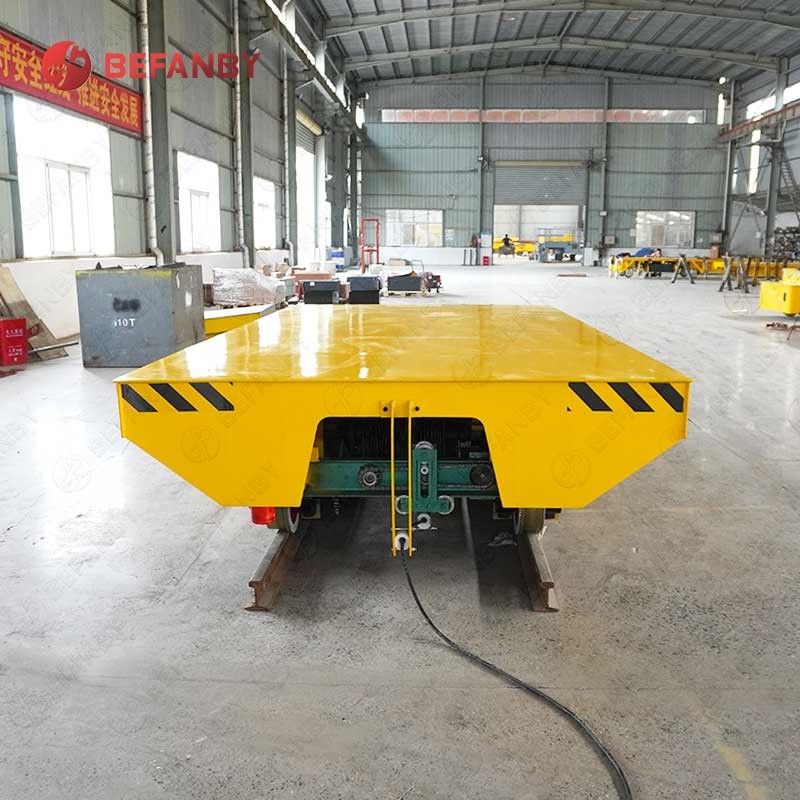

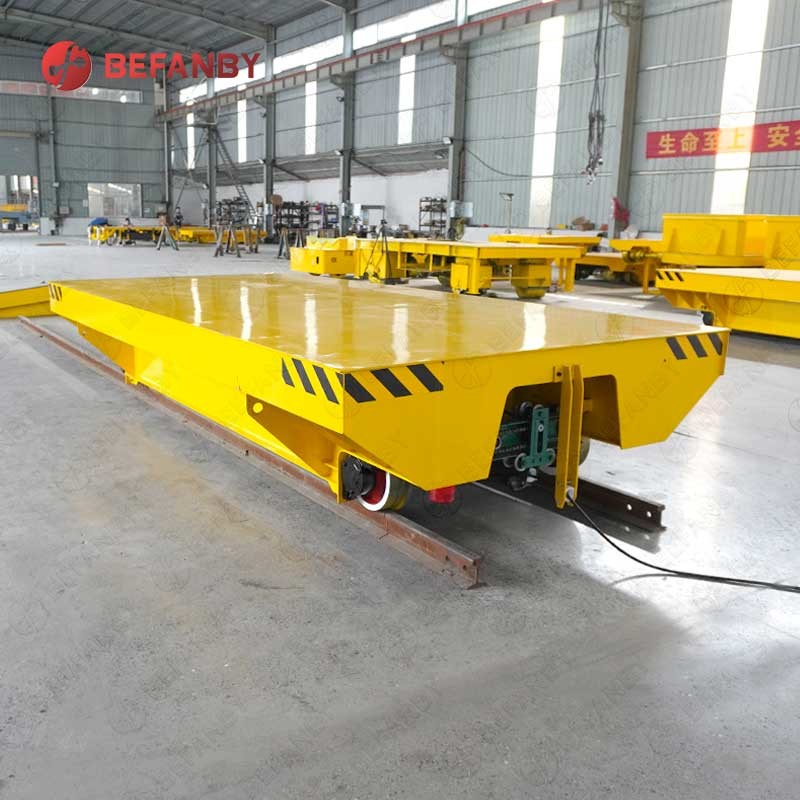

Heavy Capacity Cable Reel Rail Electric Flat Cart
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD-15Ton |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The flatbed transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Running Speed | 0-20m/min | Warranty | 12 Months |
|---|---|---|---|
| Load Capacity | 20 Tons | Port | Qingdao/Tianjin/Shanghai |
| Color | Customized | Power Supply | Cable Reel Power |
| Operation Type | Hand Pendent + Remote Control | Wheels | Cast Steel Wheels |
| Application | Factory、machinery Factory、boiler Factory | ||
| Highlight | Heavy Capacity rail transfer cart,Cable Reel rail transfer cart,Electric Flat rail transfer cart |
||
Product Description
Haeavy Capacity Cable Reel Rail Electric Flat Cart
Product Description
As an important material handling tool, rail electric transfer cart has a wide range of applications and irreplaceable importance. It has a simple structure, easy operation, can be used in various environments, and has explosion-proof characteristics, which greatly enhances its safety and scope of use.
Rail electric transfer cart is widely used in various industrial fields, such as pharmaceutical, chemical, metallurgical, mining and other industries, and can be used to transport various items, such as raw materials, finished products, semi-finished products, etc. It can not only improve the efficiency of material handling and reduce the labor intensity of workers, but also ensure the safety and stability of transported materials.
In addition, rail electric transfer cart can also be customized according to the special requirements of customers, such as increasing carrying capacity, changing body size, installing special accessories, etc. These customized needs can meet the specific needs of customers, improve efficiency and reduce costs.
Finally, the after-sales service of rail electric transfer cart is also very trustworthy. The professional team provides technical support and after-sales service to customers, ensuring the normal operation of the vehicle and customer satisfaction.
In summary, rail electric transfer cart has a wide range of applications and has many benefits and characteristics. We should actively explore its potential, strive to promote and apply it, and provide more reliable and efficient material handling solutions for industrial production.
Product Details
Product Parameter
| Model | KPD-2T | KPD-5T | KPD-10T | KPD-16T | KPD-20T | KPD-25T | KPD-30T | KPD-40T | KPD-50T | KPD-63T | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Heigth(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rai lnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Running Speed(mm) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quantity(个) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Wight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
