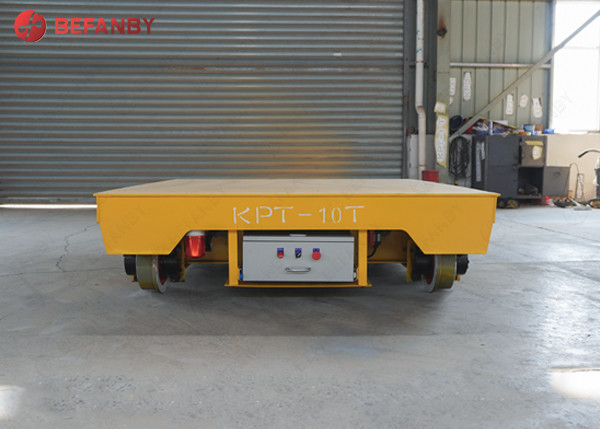

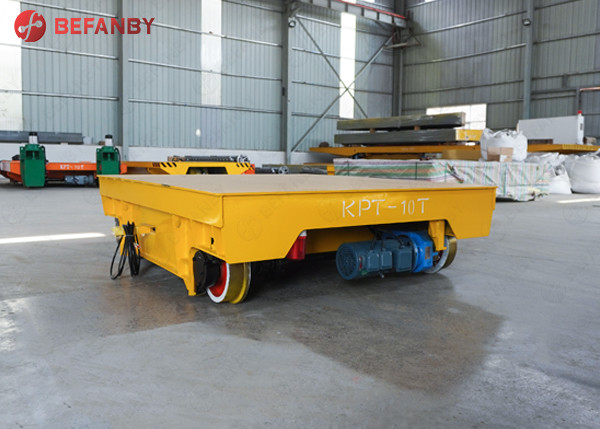

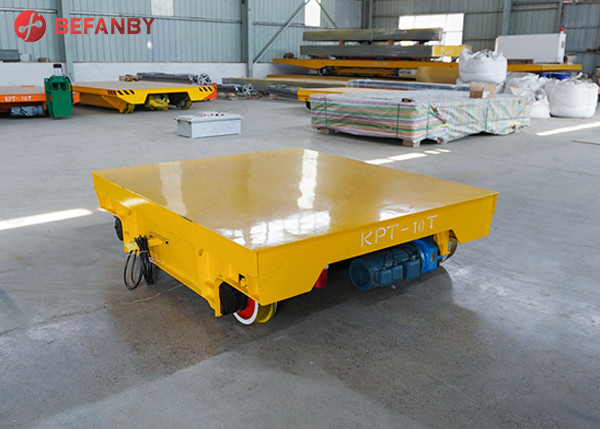

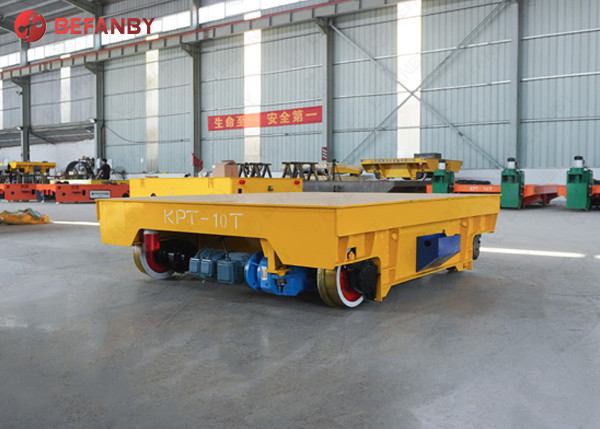

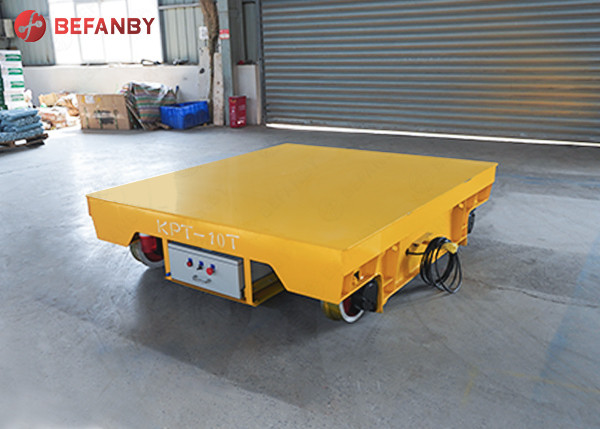

Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPT |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The material transfer cat will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Running Speed | 0-20m/min | Warranty | 12 Months |
|---|---|---|---|
| Load Capacity | 20 Tons | Application | Industrial Field, Factory,warehouse,plant |
| Port | Qingdao/Tianjin/Shanghai | Color | Customized |
| Power Supply | Cable Reel | Operation Type | Hand Pendent + Remote Control |
| Highlight | Cast Steel Wheels Track Transfer Carts,Cable Reels Track Transfer Carts,20 Tons rail transfer cart |
||
Product Description
Cast Steel Wheels Cable Reels Track Transfer Carts
Product Description
The material handling vehicle is a very practical handling equipment, which can easily move various materials from one place to another. Tracks need to be laid so that it can run flexibly along the set path. Its structure is very simple, which makes it very easy to maintain.
The material handling vehicle also has an explosion-proof function, which makes it very suitable for those occasions where there is a risk of explosion. It can also be customized according to customer requirements, which makes it very suitable for a variety of different work occasions. During the customization process, there is a dedicated technical team to provide support to customers, which allows customers to use the material handling vehicle with confidence.
In general, the material handling vehicle is a very practical equipment, which can greatly improve work efficiency. It has a simple structure, easy maintenance, powerful explosion-proof function, strong customization ability, and very good after-sales support. It can not only improve work efficiency but also reduce manpower.
Product Details
Product Parameter
| Model | KPD-2T | KPD-5T | KPD-10T | KPD-16T | KPD-20T | KPD-25T | KPD-30T | KPD-40T | KPD-50T | KPD-63T | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Heigth(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rai lnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Running Speed(mm) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quantity(个) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Wight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
