Production Line 10 Ton Material Transfer Cart On Rail
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPC |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The rail motorized trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Warranty | 18 Months | Load Capacity | 1-10T |
| Application | Industrial Field, Aluminum Profile Plant, ,workshop Handler | Port | Qingdao/Tianjin/Shanghai |
| Power Supply | Low Voltage Rail Powered | Operation Type | Hand Pendent + Remote Control |
| Highlight | Production Line Material Transfer Cart,On Rail Material Transfer Cart,10 Ton Rail Transfer Cart |
||
Product Description

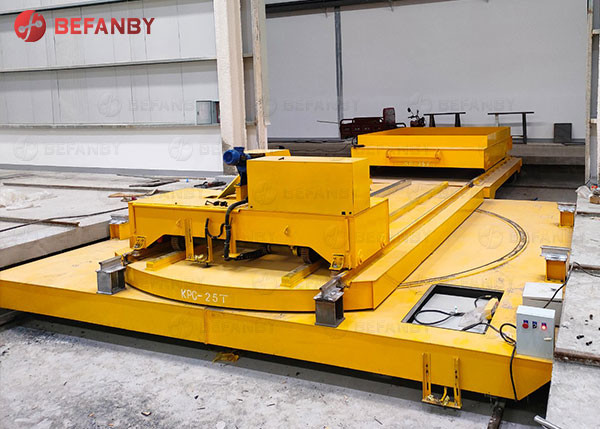

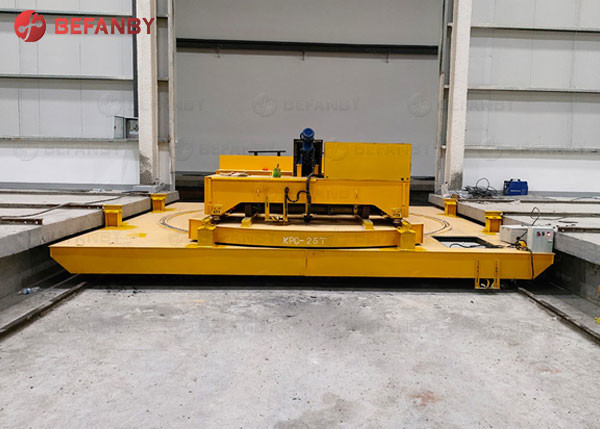

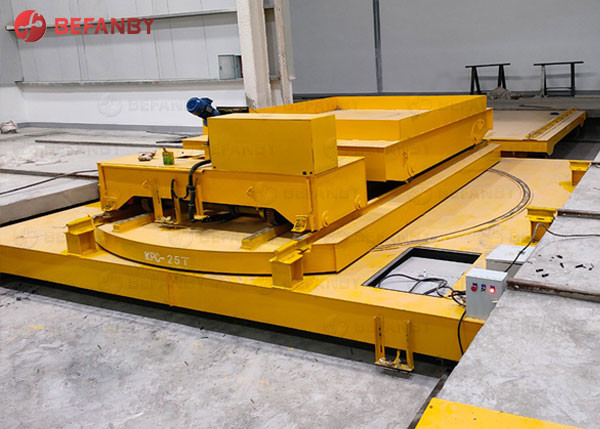

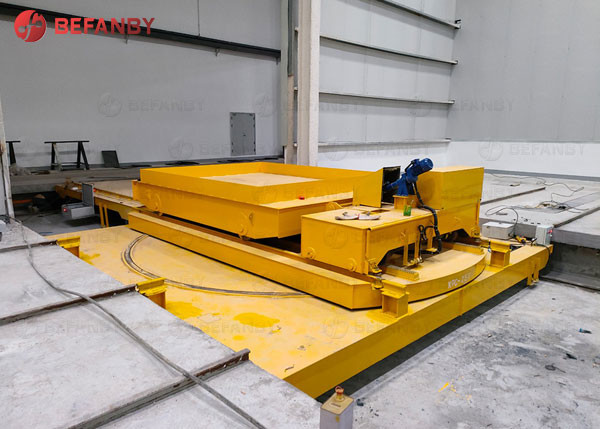

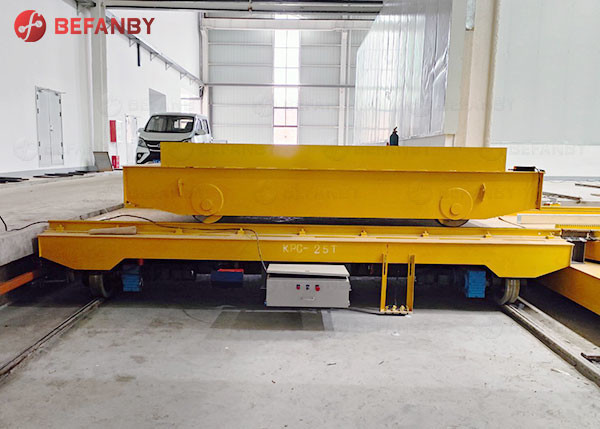

production line 10 ton material transfer cart on rail
1. Product Introduce
Material transfer carts are one of the indispensable equipment in modern industrial production. It can easily transport heavy items to designated locations, which greatly improves production efficiency. Among the types of material transfer carts, the bottom turntable cart and the upper rail cart are very common types. These two types of carts can work together to complete many transfer tasks.
The bottom turntable cart is a transport cart that can rotate 36°to dock. It is convenient and quick to unload and load. It has very good stability and balance, and can easily carry various types and sizes of goods.
The upper rail cart is a transport cart that can carry a large amount of heavy-loaded goods. It has very flexible operating performance. The use of the upper rail cart can solve the problem of narrow ground space. At the same time, its carrying capacity is also very strong, and it can easily transport items of various volumes and weights.
Both models are very practical. The bottom turntable cart can move goods, while the upper rail cart can only travel in the air. Therefore, the combined use of the bottom turntable cart and the upper rail cart can provide a more complete solution for transfer. The bottom turntable cart moves the items from the ground to the track of the upper rail cart, and the upper rail cart then moves the items to the designated location. Such operation can improve transfer efficiency and reduce transfer time.
|
Please contact us if you's like to learn more details and get the quotation.
BEFANBY have over 20 years' experience in the material handling fields. |
f
Welcome to inquiry us if you'd like to learn more
3. Technique Parameter
KPD series is a rail motorized trolley used in warehouses; KPX series is a battery electric motorized rail trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered motorized rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
Welcome to contact us for more material handling solution!
