Product Details
Product Name Heavy Load Electrical Factory Use Railway Transfer Trolleys Power Supply Mobile Cable
Running Distance According To Customers' Demand Running Speed 0-20m/min
Color Customized Load Capacity 1-300T
Warranty 12 Months Application Industrial Field
Highlight

Factory Use Railway Transfer Trolleys

,

Electrical Railway Transfer Trolleys

,

Heavy Load Railway Transfer Trolleys
Leave a Message
Product Description
Heavy Load Electrical Factory Use Railway Transfer Trolleys

Brief Introduction


The rail electric transfer cart is an advanced transportation equipment. First of all, it is made of high-strength steel, which is not only guaranteed in quality, but also has good corrosion resistance and wear resistance, ensuring a long service life. Secondly, the car has a simple structure and is easy to operate, which improves work efficiency and shortens the business cycle.

In the field of factory transportation, the rail electric transfer cart plays a great role. It can be transported flexibly according to different needs to meet the needs of various logistics processes. At the same time, it has the characteristics of environmental protection and energy saving, reduces pollution to the environment, and meets the requirements of people in modern society for environmental protection.

In addition, the rail electric transfer cart also has the characteristics of large carrying capacity, long transmission distance, and low error rate, which can better meet the work needs. Therefore, the rail electric transfer cart will become the mainstream equipment in the field of logistics and transportation in the future, and make greater contributions to the development of logistics and transportation in human society.

In short, the rail electric transfer cart has multiple advantages, can be customized according to customer requirements, and provide one-stop service.

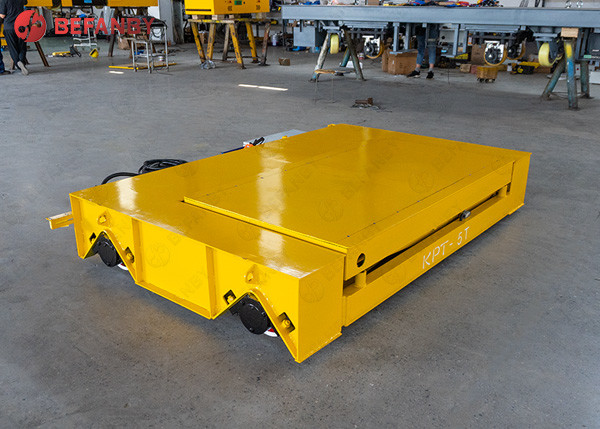

Heavy Load Electrical Factory Use Railway Transfer Trolleys 0Heavy Load Electrical Factory Use Railway Transfer Trolleys 1


Working Principle

KPT series' mobile cable transfer car----it conducts AC380v directly into the electrical control system of the transfer cart to start, stop, go forward backforward and so on.The cart is powered by dragged cable which is laid on the ground. the cable line is placed between the two rails. The operation system is low voltage 36v power.

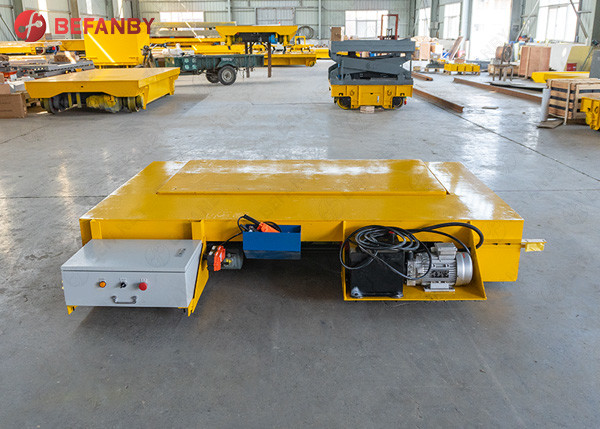

Heavy Load Electrical Factory Use Railway Transfer Trolleys 2


Character Showing
  • Anti-explosion
  • Heat-resist
  • Safe devces are installed
  • Customization can be supported
  • High Quality
  • Low cost
  • No limitation of time
  • Simple structure
  • High frequency
  • No strict requirement of rails
  • Easy abrasion for cable
  • Need dig trench,impair the ground
  • The cart is suitable to use in short distance(<=20m), low cart's height

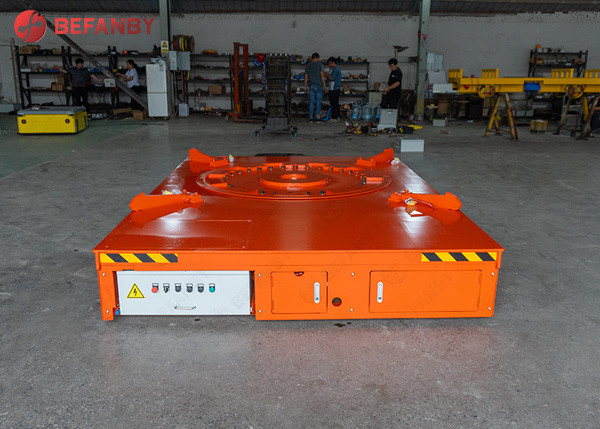

Heavy Load Electrical Factory Use Railway Transfer Trolleys 3


Technique Parameter

Model KPT-2t KPT-5t KPT-10t KPT-16t KPT-20t KPT-25t KPT-30t KPT-40t KPT-50t KPT-63t KPT-80t KPT-100t KPT-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Processing Line

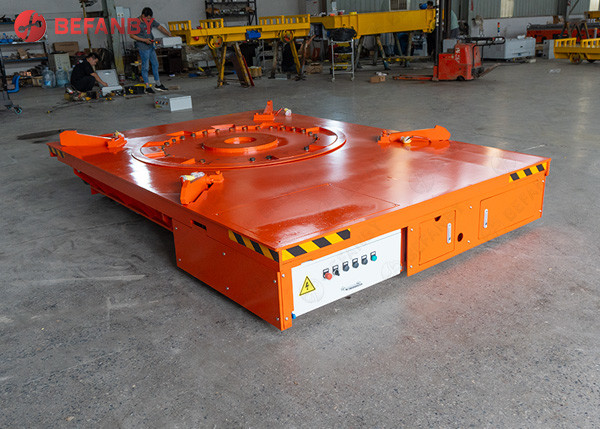

Heavy Load Electrical Factory Use Railway Transfer Trolleys 4


Packing & Delivery

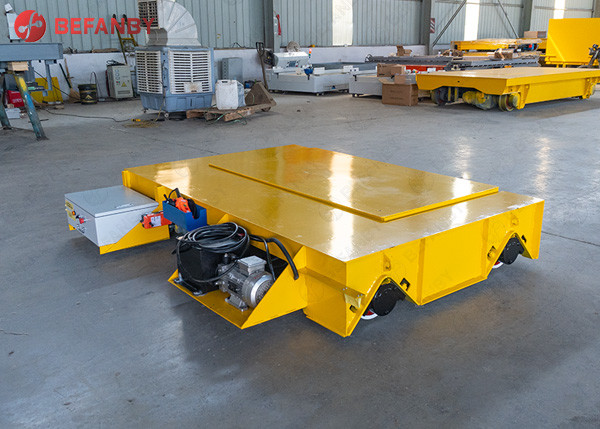

Heavy Load Electrical Factory Use Railway Transfer Trolleys 5


Brief Introduction

BEFANBY

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.


Heavy Load Electrical Factory Use Railway Transfer Trolleys 6


Our Customer


Heavy Load Electrical Factory Use Railway Transfer Trolleys 7


Why Choose Us?


Heavy Load Electrical Factory Use Railway Transfer Trolleys 8


Production Supply Scope

Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-300ton, can be customized per client demand Running distance Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery Using frequency
Motorized Transfer Trolley KPJ Cable Drum Running distance
Busbar Powered Handling Cart KPC Busbar Working shop
Towed Rail Trailer KP Tractor 1-100t Working shop
Steerable Towed Car BWT Tractor Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. Working environment
Trackless Handling Machine BWP Battery Working path

Our After service
  • Our commitment:
  • 1> The load bearing safety factor of the trolley is no less than 120%.
  • 2>Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 3> 16 hours engineering service and 24 hours internet service for our customers
  • 4> During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • 5> Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
