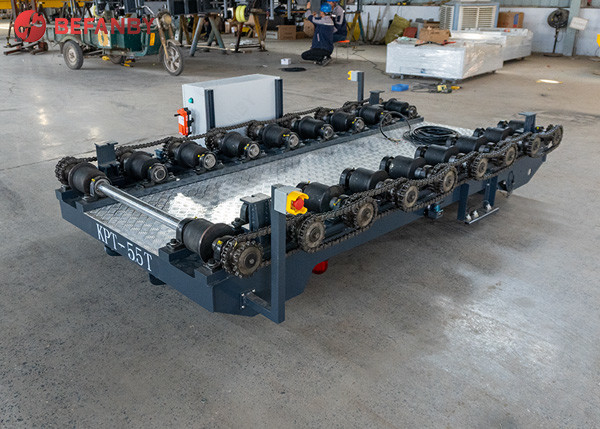

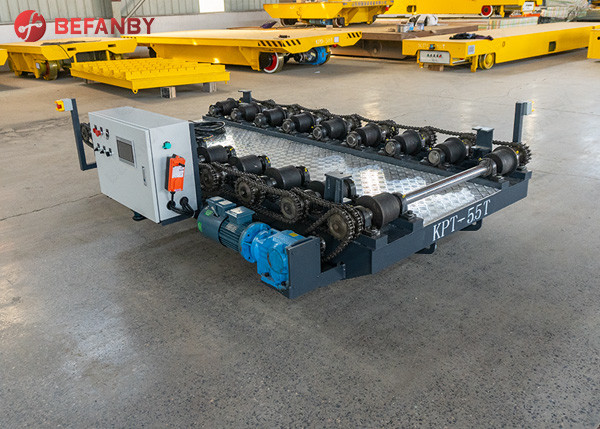

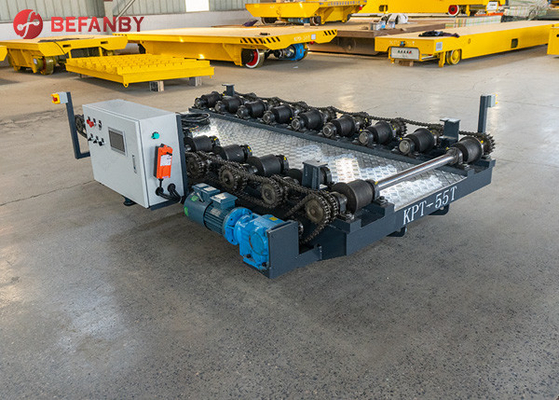

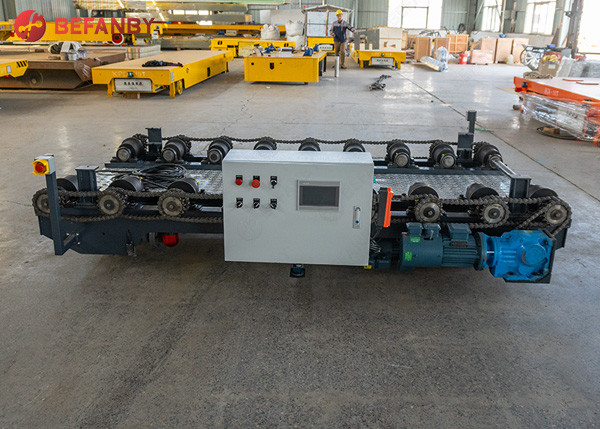

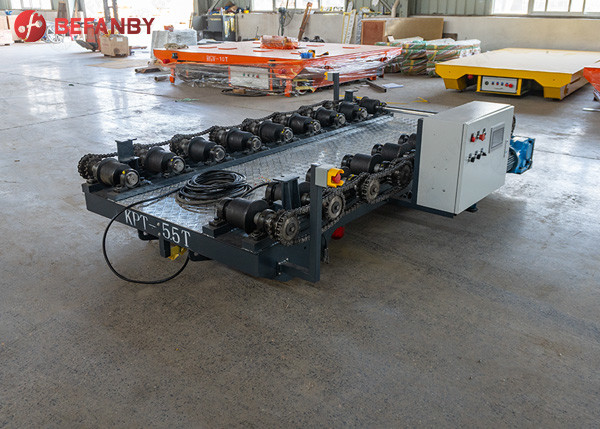

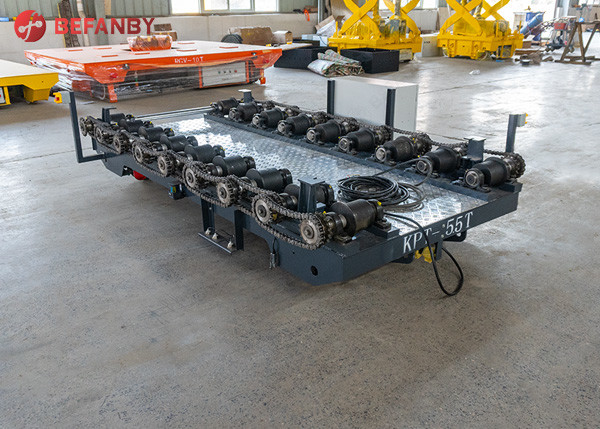

Customized Mobile Cable Railway Transport Cart

  • Customized Mobile Cable Railway Transport Cart
  • Customized Mobile Cable Railway Transport Cart
  • Customized Mobile Cable Railway Transport Cart
  • Customized Mobile Cable Railway Transport Cart
  • Customized Mobile Cable Railway Transport Cart
  • Customized Mobile Cable Railway Transport Cart
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number KPT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 30-20 days as usual delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Customized Mobile Cable Railway Transport Cart Power Supply Mobile Cable
Running Distance According To Customers' Demand Running Speed 0-20m/min
Color Customized Load Capacity 1-300T
Warranty 12 Months Application Industrial Field
Highlight

Mobile Cable Railway Transport Cart

,

Customized Mobile Cable Railway Transport Cart

,

Customized motorized transfer cart
Leave a Message
Product Description

Customized Mobile Cable Railway Transport Cart

Brief Introduction

The rail electric transfer cart is an efficient, stable and reliable factory handling equipment. It can greatly improve work efficiency and reduce labor costs in factories, warehouses, docks and other places where goods need to be transported. As a new type of electric vehicle, the rail electric transfer cart cleverly uses the drag chain power supply technology, which makes the use time unlimited and greatly improves work efficiency.
It can be customized and improved according to customer requirements. For example, adding rollers and other equipment to the table can move items more conveniently, reduce manual handling and improve efficiency. At the same time, the rail electric transfer cart focuses on humanization in design, according to different use occasions and use needs.
It can be used in a variety of handling occasions, such as steel plants, glass factories, construction sites, etc., and can work efficiently. We have a professional work team to provide you with after-sales service and door-to-door installation and debugging.
In summary, the rail electric transfer cart is a multifunctional logistics equipment. It has injected new impetus into the field of handling work, improved work efficiency, reduced labor costs, and is a powerful assistant for the development of modern enterprises.


Customized Mobile Cable Railway Transport Cart 0Customized Mobile Cable Railway Transport Cart 1


Working Principle

KPT series' mobile cable transfer car----it conducts AC380v directly into the electrical control system of the transfer cart to start, stop, go forward backforward and so on.The cart is powered by dragged cable which is laid on the ground. the cable line is placed between the two rails. The operation system is low voltage 36v power.


Customized Mobile Cable Railway Transport Cart 2


Character Showing
  • Anti-explosion
  • Heat-resist
  • Safe devces are installed
  • Customization can be supported
  • High Quality
  • Low cost
  • No limitation of time
  • Simple structure
  • High frequency
  • No strict requirement of rails
  • Easy abrasion for cable
  • Need dig trench,impair the ground
  • The cart is suitable to use in short distance(<=20m), low cart's height



Customized Mobile Cable Railway Transport Cart 3


Technique Parameter

Model KPT-2t KPT-5t KPT-10t KPT-16t KPT-20t KPT-25t KPT-30t KPT-40t KPT-50t KPT-63t KPT-80t KPT-100t KPT-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Processing Line


Customized Mobile Cable Railway Transport Cart 4


Packing & Delivery


Customized Mobile Cable Railway Transport Cart 5


Brief Introduction

BEFANBY

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.


Customized Mobile Cable Railway Transport Cart 6


Our Customer


Customized Mobile Cable Railway Transport Cart 7


Why Choose Us?


Customized Mobile Cable Railway Transport Cart 8


Production Supply Scope

Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-300ton, can be customized per client demand Running distance Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery Using frequency
Motorized Transfer Trolley KPJ Cable Drum Running distance
Busbar Powered Handling Cart KPC Busbar Working shop
Towed Rail Trailer KP Tractor 1-100t Working shop
Steerable Towed Car BWT Tractor Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. Working environment
Trackless Handling Machine BWP Battery Working path

Our After service
  • Our commitment:
  • 1> The load bearing safety factor of the trolley is no less than 120%.
  • 2>Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 3> 16 hours engineering service and 24 hours internet service for our customers
  • 4> During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • 5> Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
