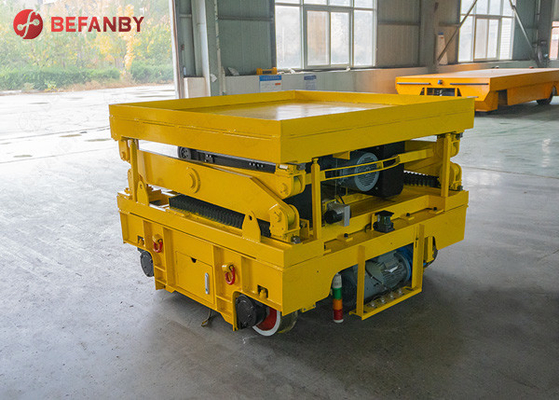

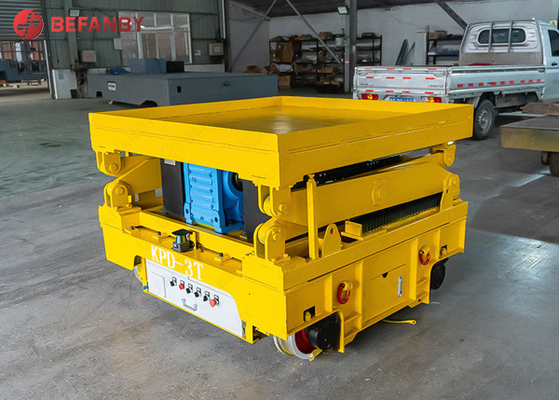

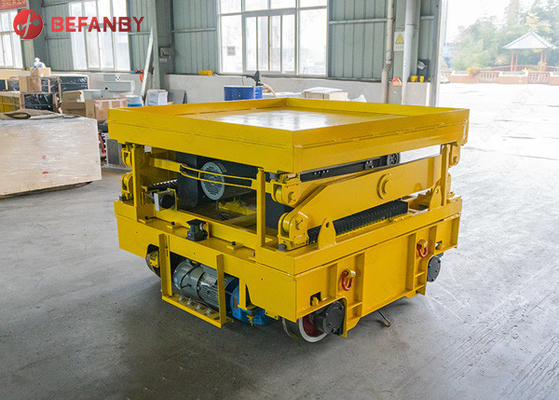

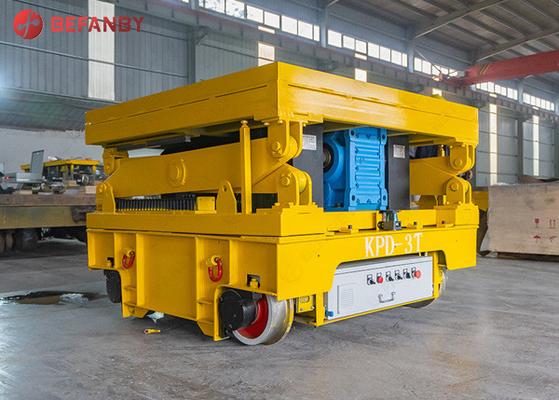

Scissor Lift Low Voltage Railway Electric Transfer Cart
Place of Origin | Henan, China |
---|---|
Brand Name | BEFANBY |
Certification | CE,SGS,ISO9001 |
Model Number | KPD |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | The rail power transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1000 set/sets per year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Q235 | Running Speed | 0-20m/min |
---|---|---|---|
Running Distance | According To Customers'demand | Warranty | 18 Months |
Load Capacity | 1-1000T | Application | Industrial Field, Steel Plant Transportation |
Port | Qingdao/Tianjin/Shanghai | Color | Customized |
Power Supply | Low Voltage Rail Powered | Operation Type | Hand Pendent + Remote Control |
Rail And Wheel | Insulated Material Will Be Added | ||
Highlight | Low Voltage Railway Electric Transfer Cart,Railway Electric Transfer Cart,Scissor Lift Railway Electric Transfer Cart |
1. Product Introduce
Low-voltage rail electric transfer trolley is a kind of transportation equipment widely used in industrial production. It adopts low-voltage rail and cast steel wheels, can bear heavy load, and runs smoothly with low noise. In addition, low-voltage rail electric transfer trolley also has flexible rotation and flexible turning on the track, which can better play its role.
The running distance of low-voltage rail electric transfer trolley is not limited, because it can be designed with different battery capacities as needed to meet different transportation needs. Compared with traditional push-type transfer trolleys, low-voltage rail electric transfer trolleys have higher efficiency and better safety performance. A variety of safety protection devices can not only reduce the physical labor of workers, but also ensure the stability and safety of goods, and reduce the incidence of accidents. In modern industrial production, low-voltage rail electric transfer trolleys have become an indispensable transportation equipment.
In short, low-voltage rail electric transfer trolley is an advanced, efficient and safe transportation equipment. It will greatly improve the production efficiency of industrial manufacturing, reduce production costs, and create more value for enterprises. We should actively promote and apply this technology to continuously promote the development of industrial production. |
1. All kinds of rollers (V-Groove Deck) 2. Tanks (Size/Stability For Uniformly Distributed Loads) 3. Assemblies lines (Fixture Cradle) For A Complete Build Or To Send A Partially Completed Product To The Next Station (Tractors, Heavy Equipment Machinery) 4. Sub-Assembly Shuttle From One Line To Another Line 5. Maintenance Cart For Motors And Pumps 6. Equipment Support (Stand-Off Deck) For Navigating Loads To Locations With A Plant Facility 7. Material Shuttle For Steel Tubing (Flat Decking With Guard Rails) 8. Elevating Platform For Assembly Process (Integrated Screw-Jack Table) 9. Sand blasting (Flat Decking) 10. Mold Transfer |
f
Please contact us if you's like to learn more details and get offer to us.
BEFANBY have over 20 years' experience in the material handling fields. |

Welcome to inquiry us if you'd like to learn more
Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 |
Our Company

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
