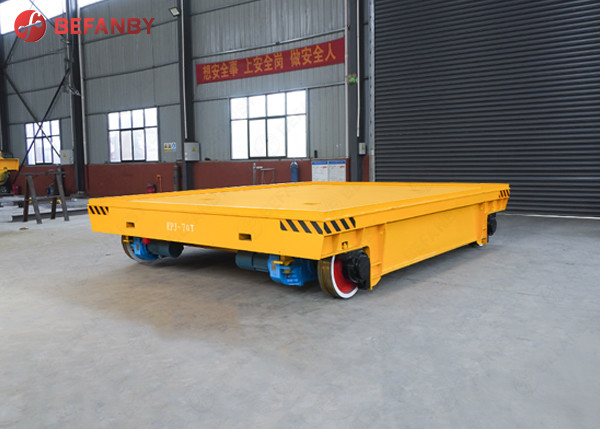

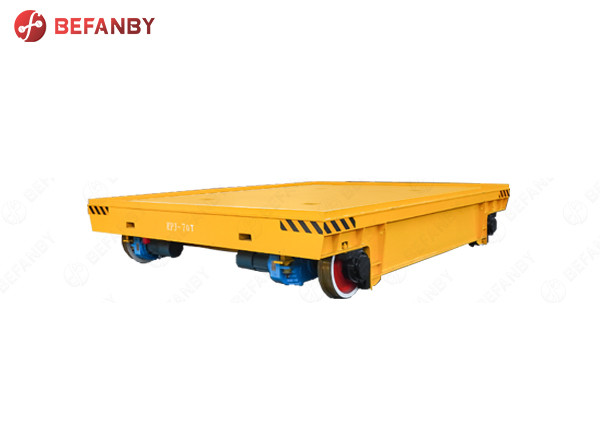

Simple Structure Battery Railway Transport Cart
Place of Origin | Henan,China |
---|---|
Brand Name | BEFANBY |
Certification | CE, SGS, ISO9001 |
Model Number | KPT |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
Delivery Time | 30-20 days as usual delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 600 set/sets per year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Simple Structure Battery Railway Transport Cart | Power Supply | Cable Reel |
---|---|---|---|
Running Distance | According To Customers' Demand | Running Speed | 0-20m/min |
Color | Customized | Load Capacity | 1-300T |
Warranty | 12 Months | Application | Industrial Field |
The cable track electric transfer cart is a practical transportation tool widely used in factories, production lines and other places. It has a simple structure and reliable carrying capacity, and can easily complete various handling tasks.
The cable and cable reel used in this electric transfer cart work with each other. It runs stably on the pre-laid track and enables it to travel freely in any area on the ground, even in a complex environment. In addition, the cable track electric transfer cart can also carry a large amount of cargo, and the transportation tonnage can be customized according to customer requirements.
The cable track electric transfer cart uses a DC power supply method to effectively avoid energy waste and environmental pollution, which is in line with today's green and environmentally friendly development concept. In addition, the cable track electric transfer cart is also safe and reliable. Since its main structure is controlled and operated by a fully automated device, the probability of accidents can be greatly reduced.
In short, the cable track electric transfer cart is an efficient and practical industrial handling equipment that can not only improve production efficiency and reduce costs, but also is very environmentally friendly. It is an indispensable transportation tool for modern industrial development.
- Anti-explosion
- Heat-resist
- Safe devces are installed
- Customization can be supported
- High Quality
- Low cost
- No limitation of time
- Simple structure
- High frequency
- No strict requirement of rails
- Easy abrasion for cable
- Need dig trench,impair the ground
- The cart is suitable to use in short distance(<=20m), low cart's height
Model | KPT-2t | KPT-5t | KPT-10t | KPT-16t | KPT-20t | KPT-25t | KPT-30t | KPT-40t | KPT-50t | KPT-63t | KPT-80t | KPT-100t | KPT-150t | |
Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | 800 | 850 | 1200 | |
Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
Motor Power | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
Reference Weight | 2.3 | 3.3 | 3.8 | 5 | 5.5 | 6 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 | 26 | |
Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
Busbar Powered Handling Cart | KPC | Busbar | Working shop | ||
Towed Rail Trailer | KP | Tractor | 1-100t | Working shop | |
Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment | |
Trackless Handling Machine | BWP | Battery | Working path |
- Our commitment:
- 1> The load bearing safety factor of the trolley is no less than 120%.
- 2>Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
- 3> 16 hours engineering service and 24 hours internet service for our customers
- 4> During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- 5> Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
