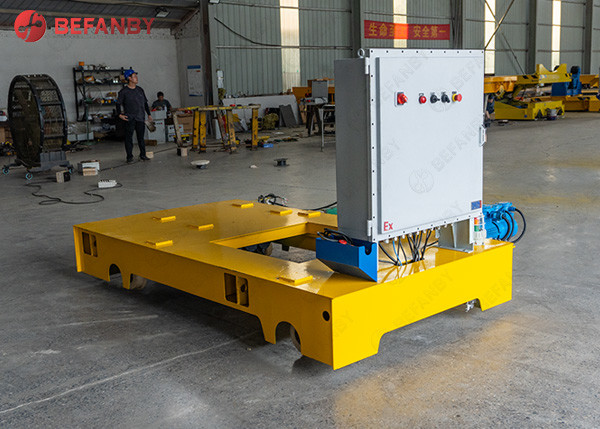

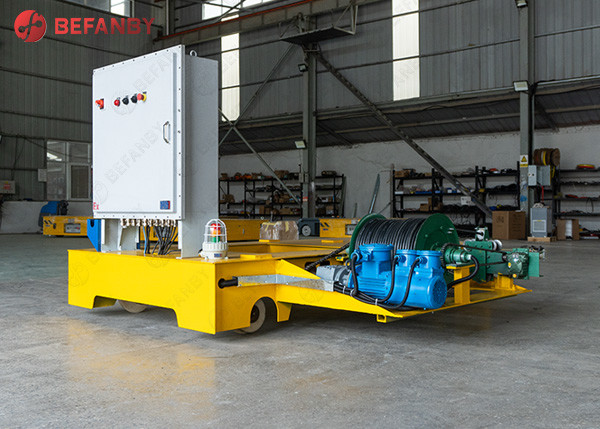

Heavy Duty Cable Reel Motorized Transfer Trolley
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPJ-20T |
| Minimum Order Quantity | 1 pcs |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 1500 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Factory,workshop,warehouse | Load Capacity | 1-1500t |
|---|---|---|---|
| Car Size | Customized | Exported Countries | Singapore, Australia, South Africa, Mexico |
| Electrical Parts | Siemens, Schneider, Nord | Safety Devices | Warning Lamp, Siren, Bumper |
| Power Supply | Cable | ||
| Highlight | Heavy Duty Motorized Transfer Trolleys,Motorized Cable Reel Transfer Trolleys,Heavy Duty battery powered transfer carts |
||
Product Description
Haeavy Duty Cable Reel Motorized Transfer Trolleys
Product Description of Motorized Transfer Trolleys
The cable drum transporter is a kind of handling equipment specially used for heavy-loaded goods. It is widely used in production lines, factories, construction and other industries. The following is a detailed introduction:
1. Main functions
Drum support and rotation: Some models are equipped with a rotation function to facilitate the release or reeling of cables.
Storage and organization: Centralized management of cable drums to save site space.
2. Structural features
Frame: adopts box beam structure with strong load-bearing capacity (usually more than 1-10 tons).
Drum bracket: adjustable design, suitable for drums of different diameters (commonly 0.5-3 meters).
Wheels: heavy-duty universal wheels or directional wheels, some with brakes.
Control: generally remote control or handle can be selected
In addition, lifting or protective devices can be installed according to customer requirements. The table size and load can be customized according to actual working conditions.
Main Parts Of Motorized Transfer Trolleys
Technical Parameter
| Model | KPJ-2T | KPJ-5T | KPJ-10T | KPJ-16T | KPJ-20T | KPJ-25T | KPJ-30T | KPJ-40T | KPJ-50T | KPJ-63T | KPJ-80T | KPJ-100T | KPX-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
|
