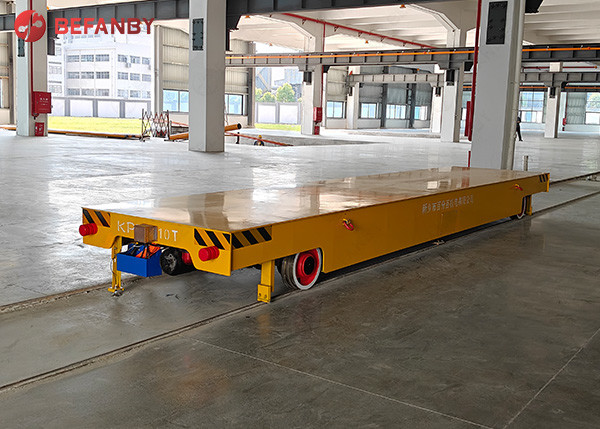

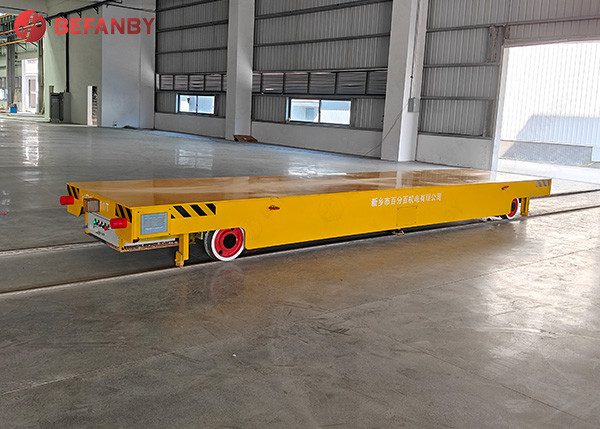

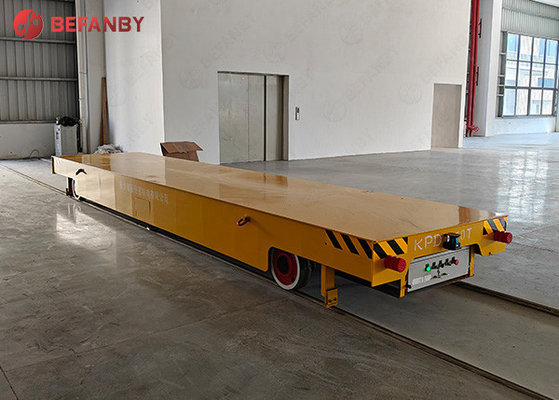

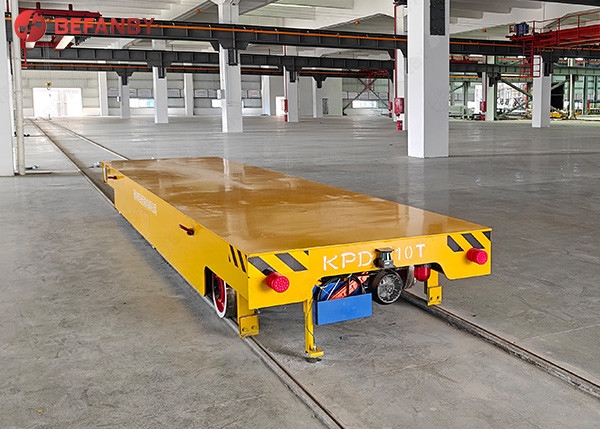

10 Ton Low Voltage Rail Transfer Trolley
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD |
| Minimum Order Quantity | 1 set/sets |
| Packaging Details | The railway transfer car will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Running Distance | According To Customers'demand | Warranty | 18 Months |
| Load Capacity | 1-1000T | Application | Industrial Field, Steel Rolls Handling, Steel Billiets Transfer |
| Port | Qingdao/Tianjin/Shanghai | Color | Customized |
| Power Supply | Low Voltage Electricity Operated | Operation Type | Hand Pendent + Remote Control |
| Rail And Wheel | Insulated Material Will Be Added | ||
| Highlight | 10 Ton Rail Transfer Trolley,Low Voltage Rail Transfer Trolley,10 Ton rail transfer cart |
||
Product Description
10 Ton Low Voltage Rail Transfer Trolley
1. Product Introduce
The low-voltage rail transfer trolley is a transport equipment powered by a 36V or 48V safe voltage rail. It has the characteristics of long service life, unlimited running time and high safety. The equipment relies on the conductive device (low-voltage rail) embedded in the rail to obtain electricity through sliding contact to achieve smooth operation along the rail.
The trolley has a sturdy structure and strong bearing capacity, and adopts a steel i splicing structure. It is often used in industrial occasions such as mold handling, steel transfer, and production line material distribution. The table size, load capacity, running speed and function expansion module can be customized according to the actual working conditions to meet the needs of different working conditions.
Special functions can be added, such as lifting system (scissor lift, table lift), conveying device (roller/chain), table structure customization (V-shaped frame, coil rack, hollow structure, etc.) There are many different forms to choose from to meet your handling needs.
|
Please contact us if you's like to learn more details and get the quotation.
BEFANBY have over 16 years' experience in the material handling fields. |
2. Working Principle
1. Low-voltage rail power supply system
The requirements for the rail are relatively high and need to be insulated.
1. Low-voltage rail power supply system
The requirements for the rail are relatively high and need to be insulated.
2. Power supply device
The bottom of the trolley is equipped with a carbon brush, which continuously draws electricity through sliding contact with the rail, and then transmits electricity to the motor and controller through rectification and control system.
3. Rail-guided operation
Running along a fixed rail to ensure accurate running direction and fixed path, suitable for standardized handling paths within the workshop.
3. Feature
A.The steel roll handling self-propel flat table railway transfer car 6 ton supplier can be applied for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, die/mold, mould, etc
B.For horizontal load transfers of a wide range of material, hycrane has the heavy duty, high quality Transfer Cart solution you need.
C.Steel roll handling self-propel flat table railway transfer car 6 ton supplier are used to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base.
D.It's necessary equipment for lifting goods,raising labor efficiency,improving working conditions.
4. Technique Parameter
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
6. Successful case
Our low-voltage track steel roll handling self-propel flat table railway transfer car 6 ton supplier is exported to foreign countries. A steel company in Uzbekistan ordered us a 20-ton low-pressure rail truck. The ordering truck was mainly used to transport steel plates, transported from the workshop to the warehouse, and the total transportation distance was 150 meters. A total of two transformers were added to compensate for the rail buck. There is no cable drag in the workshop and there is a fixed transportation route, which increases safety. Convenient for other activities.
