Custom Countertops Rail Sliding Line Transport Cart
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPC-25 T |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The Transfer Cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Custom Countertops Rail Sliding Line Transport Cart | Running Speed | 0-20m/min |
|---|---|---|---|
| Warranty | 18 Months | Load Capacity | 20 Tons |
| Application | Factory,warehouse,port,plant,workshop | Port | Qingdao/Tianjin/Shanghai |
| Color | Customized | Power Supply | Slidling Line Power |
| Operation Type | Hand Pendent + Remote Control | ||
| Highlight | Rail Sliding Line Transport Cart,Custom rail transfer cart,Countertops rail transfer cart |
||
Product Description

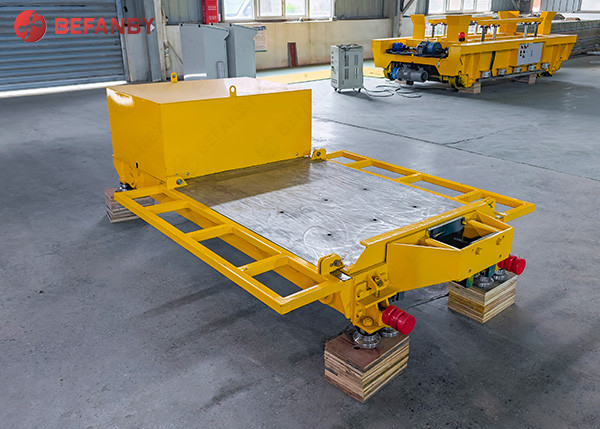

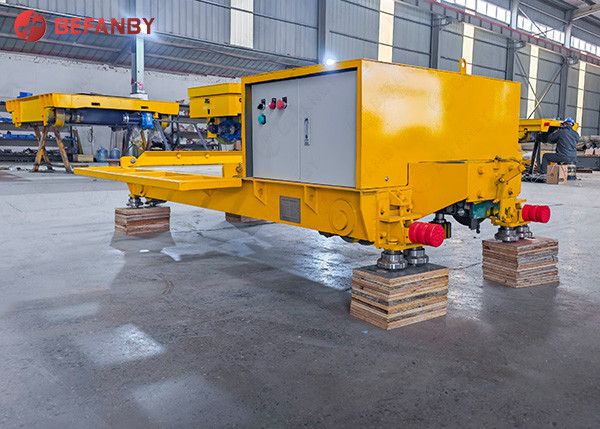

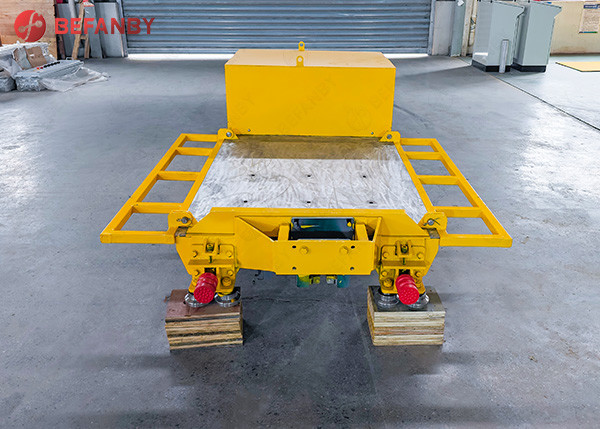

Custom Countertops Rail Sliding Line Transport Cart
Product Description
Rail transport cart (also known as rail flat car, electric flat car, etc.) is a kind of handling equipment running on fixed rail, which is widely used in factories, warehouses, production lines and other scenes for heavy object transportation. Its core features are simple structure, high flexibility, and the ability to flexibly adjust the table style and functional configuration according to customer needs.
1. Structural features
Simple and reliable: usually composed of steel structure frame, drive motor, wheelset, control system, easy maintenance.
Strong load-bearing capacity: high-strength steel structure material is adopted. Strong load-bearing capacity, can be designed for 1 ton to hundreds of tons of load according to needs.
rail type: optional I-beam or embedded rail, adapt to different ground conditions according to different working scenes and vehicle models.
2. Optional additional devices
According to customer needs, the following functional modules can be customized:
Power system: electric (battery/cable power supply/low-voltage rail, etc.), motor drive.
Control system: handle or remote control operation.
Safety device: anti-collision buffer, sound and light alarm, emergency stop button, limit switch.
It can be applied to a variety of work scenarios, such as: docking and handling on the production line, docking and transportation in high-temperature furnaces, etc. If you have any needs, please come to the store for consultation!
Product Details
Product Parameter
| Model | KPD-2T | KPD-5T | KPD-10T | KPD-16T | KPD-20T | KPD-25T | KPD-30T | KPD-40T | KPD-50T | KPD-63T | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Heigth(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rai lnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Running Speed(mm) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quantity(个) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Wight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
