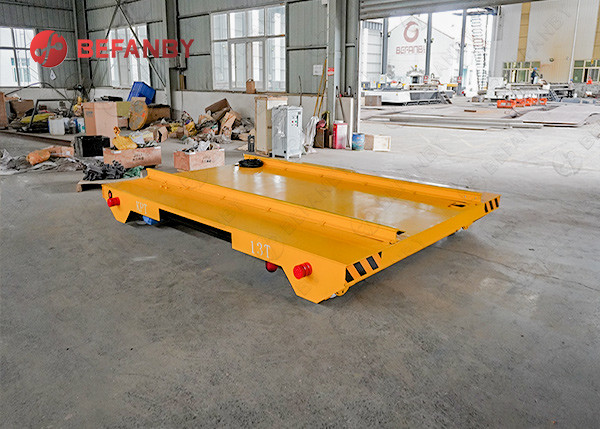

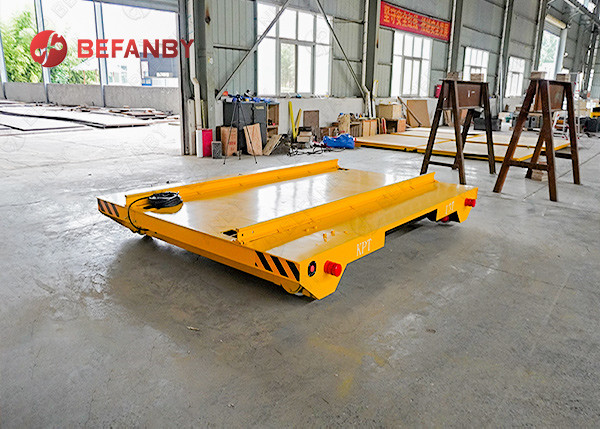

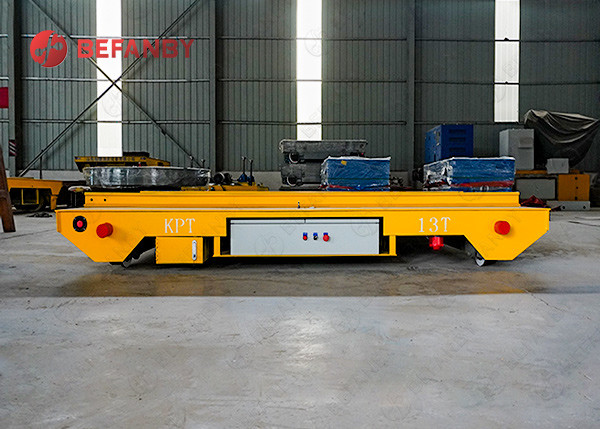

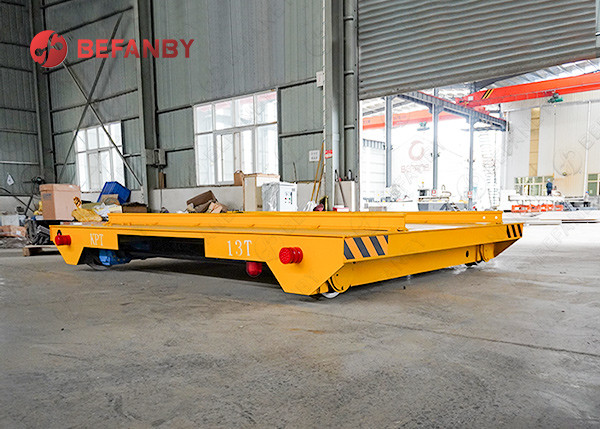

Easy Operation Factory Use Towed Cable Powered Railway Transport Cart

  • Easy Operation Factory Use Towed Cable Powered Railway Transport Cart
  • Easy Operation Factory Use Towed Cable Powered Railway Transport Cart
  • Easy Operation Factory Use Towed Cable Powered Railway Transport Cart
  • Easy Operation Factory Use Towed Cable Powered Railway Transport Cart
  • Easy Operation Factory Use Towed Cable Powered Railway Transport Cart
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number KPT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 20-30 days as usual delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1500 set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply Mobile Cable Running Distance According To Customers' Demand
Running Speed 0-20m/min Color Customized
Load Capacity 15 Tons Warranty 12 Months
Product Name Flexible Operated Railway Mobile Reel Transport Trolley Application Metallurgy Plant,Factory,coal Plant
Leave a Message
Product Description

Easy Operation Factory Use Towed Cable Powered Railway Transport Cart

Brief Introduction

The mobile drag chain rail transfer cart adopts a drag chain power supply system, which is stable and reliable in operation and suitable for medium and short distance, high-frequency transportation scenarios. The drag chain structure effectively protects the cable, avoids wear and entanglement, and prolongs the service life of the equipment. The body design is compact and flexible in turning. It can adapt to a variety of carrier requirements and is widely used in production line transfer, parts workshops and other fields.
High load design
Heavy-duty steel splicing frame with strong load-bearing capacity, suitable for materials of different specifications from 10T to 80T.
Customized V-shaped frame to ensure stable handling of coils, anti-rolling and anti-slip.

Intelligent control & precise positioning
DC motor variable frequency drive, smooth start and stop, avoid material shaking.
Optional wireless remote control + intelligent laser positioning, more convenient operation and more accurate positioning.

Durable and reliable
Dust-proof and anti-corrosion design, suitable for high temperature and explosion-proof occasions. Dusty, humid and other harsh industrial environments.


Easy Operation Factory Use Towed Cable Powered Railway Transport Cart 0


Technique Parameter

Model KPT-2t KPT-5t KPT-10t KPT-16t KPT-20t KPT-25t KPT-30t KPT-40t KPT-50t KPT-63t KPT-80t KPT-100t KPT-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Parts

Easy Operation Factory Use Towed Cable Powered Railway Transport Cart 1

Company Introduction

Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. is a professional and international handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.

Easy Operation Factory Use Towed Cable Powered Railway Transport Cart 2

Easy Operation Factory Use Towed Cable Powered Railway Transport Cart 3

Easy Operation Factory Use Towed Cable Powered Railway Transport Cart 4

Advantages

Easy Operation Factory Use Towed Cable Powered Railway Transport Cart 5

Application

Easy Operation Factory Use Towed Cable Powered Railway Transport Cart 6

Service Process


Easy Operation Factory Use Towed Cable Powered Railway Transport Cart 7

Easy Operation Factory Use Towed Cable Powered Railway Transport Cart 8
