Low Voltage Electricity Operated Die Transfer Flat Heavy Load Cart Rail Guided Cart

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPD
Minimum Order Quantity 1 set/sets
Price $4000-$6000/ per set
Packaging Details The rail guided cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235 Running Speed 0-20m/min
Running Distance According To Customers'demand Warranty 12 Months
Load Capacity 1-500T Application Industrial Field, Die Transfer
Port Qingdao/Tianjin/Shanghai Color Customized
Power Supply Low Voltage Electricity Operated Operation Type Hand Pendent + Remote Control
High Light

heavy duty die carts

,

motorized rail cart

Leave a Message
Product Description
Low voltage electricity operated die transfer flat heavy load cart rail guided cart


1. Product Introduce



BEFANBY die transfer flat heavy load cart rail guided cart is powered by low voltage electricity from railways, the kind of transfer cart is one of the most convenient material handling equipment and it often can be widely used in the industry field and so on. Of course,compared other transfer trolley,it main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the tracks trolley have, why we design is that its convenient (only rails needed) and its simple operation.



About BEFANBY, Our company have professional team and utilize more advanced technique to design and develope it , and it has been a long year to manufacture it attentively. Simutaneously, it will be more easy and flexible.Simple structure and low cost make it popular for workshop transportation.



Please contact us if you's like to learn more details and get the quotation.



BEFANBY have over 16 years' experience in the material handling fields.

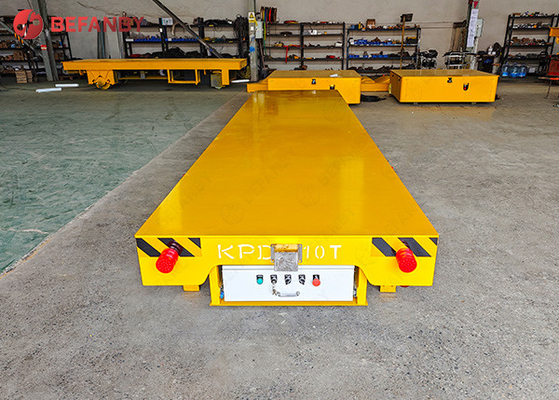

Low Voltage Electricity Operated Die Transfer Flat Heavy Load Cart Rail Guided Cart 0




2. Working Principle


BEFANBY Low voltage electricity operated die transfer flat heavy load cart rail guided cart, the power source AC380v is transformed into AC36v two-phase and are respectively connected to the two rails.Then the flat carts' wheels conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.

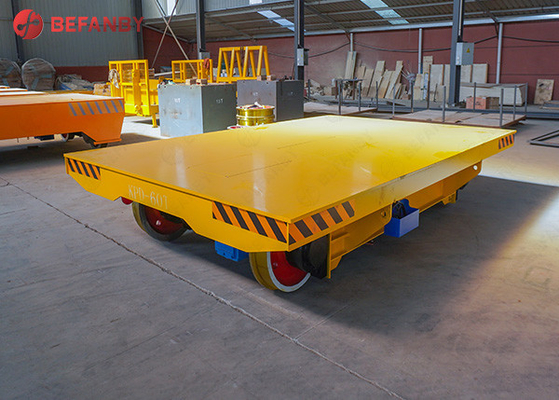

Low Voltage Electricity Operated Die Transfer Flat Heavy Load Cart Rail Guided Cart 1





3. Feature



A.The Low voltage electricity operated die transfer flat heavy load cart rail guided cart can be applied for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, die/mold, mould, etc
B.For horizontal load transfers of a wide range of material, hycrane has the heavy duty, high quality Transfer Cart solution you need.
C.Transfer carts are used to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base.
D.It's necessary equipment for lifting goods,raising labor efficiency,improving working conditions.

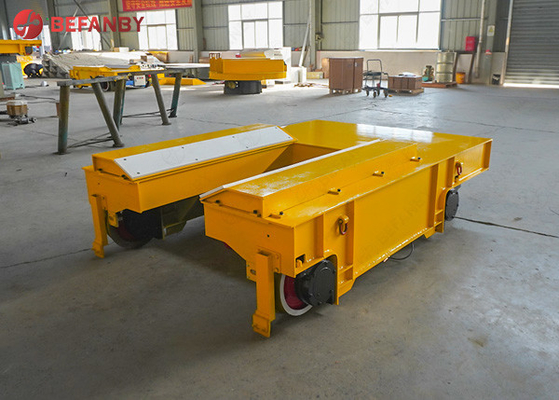

Low Voltage Electricity Operated Die Transfer Flat Heavy Load Cart Rail Guided Cart 2

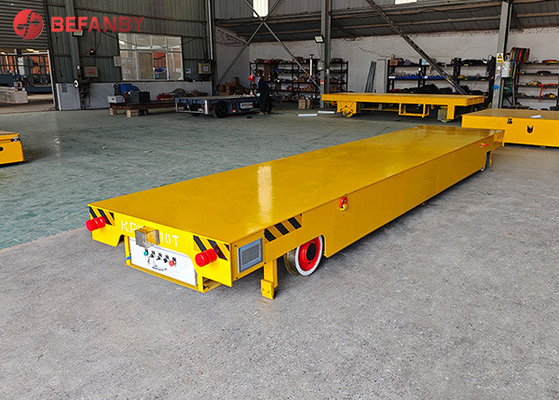

Low Voltage Electricity Operated Die Transfer Flat Heavy Load Cart Rail Guided Cart 3




4. Technique Parameter

Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50

6.Brief Introduction----BEFANBY

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 60 countries and regions,such as Saudi Arabia, UAE, Malaysia, Singapore, Singapore, Australia, Canada, Mexico, Germany, etc.


Low Voltage Electricity Operated Die Transfer Flat Heavy Load Cart Rail Guided Cart 4



BEFANBY CERTIFICATION

Low Voltage Electricity Operated Die Transfer Flat Heavy Load Cart Rail Guided Cart 5
Low Voltage Electricity Operated Die Transfer Flat Heavy Load Cart Rail Guided Cart 6


7. How to choose suitable transfer cart?

All of our transfer trolleys can be customized as client's requirement, for choose the most suitable and economic transfer trolley,please kindly providing the following information:
  • Transfer or handling what material/cargo?
  • What capacity do you need?
  • This trasnfer trolley is running on rails or ground(floor)?
  • Your requirment for table size:length,width and height?
  • How about the running distance?
  • How many working hours in per day?
Low Voltage Electricity Operated Die Transfer Flat Heavy Load Cart Rail Guided Cart 7
