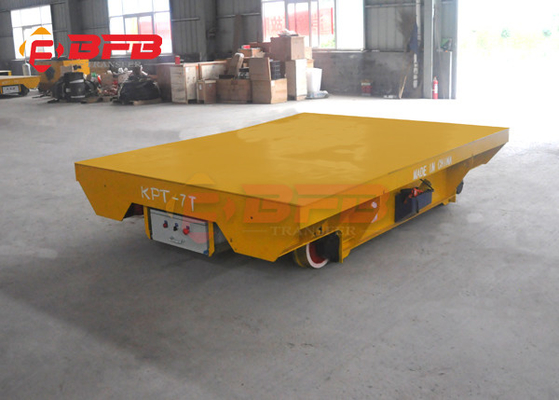

Die Transportation Motorized Electric Transfer Cart

  • Die Transportation Motorized Electric Transfer Cart
  • Die Transportation Motorized Electric Transfer Cart
  • Die Transportation Motorized Electric Transfer Cart
  • Die Transportation Motorized Electric Transfer Cart
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE SGS ISO9001
Model Number KPT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 40-50 days as usual delivery,50-60days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235 Color Customized
Application Industrial Field, Die Transportation Power Supply Dragged Cable
Running Speed 0-20m/min Running Distance According To Customers' Demand
Warranty 18 Months For Rail Wagon Platform Port Qingdao/Tianjin/Shanghai
Table Material Steel Platform Parts Electric Control System, Driving System,steering System
Operation Type Hand Pendant + Remote Control
High Light

Die Transportation Electric Transfer Cart

,

Motorized Electric Transfer Cart
Leave a Message
Product Description
KPT Series Industrial Motorized Carts / Rail Wagon Platform For Die Transportation

Working Principle

KPT series' KPT Series Industrial Motorized Carts / Rail Wagon Platform For Die Transportation----it conducts AC380v directly into the electrical control system of the motorized cart to start, stop, go forward backforward and so on.The cart is powered by dragged cable which is laid on the ground. the cable line is placed between the two rails. The operation system is low voltage 36v power.


Die Transportation Motorized Electric Transfer Cart 0




Selection reference of KPT Series Industrial Motorized Carts / Rail Wagon Platform For Die Transportation



This series of kpt series industrial motorized carts / rail wagon platform for die transportation is suitable for sites with a running distance of less than 20m, a high frequency of use and a low cart height. Due to the simple mechanism and low cost, it is a common rail wagon platform with a cross-span of the Interbay. Tows can be used to reduce cable wear in slower speeds. The running distance of this series of motorized carts should not be too long, generally less than 20m. Due to the simple mechanism and low cost, it is a common track flat car in the workshop. It can be used in the occasion of short running distance and slow running speed. To reduce cable wear, it is suitable for occasions with high frequency of use and low vehicle height. The running distance of this series of flat cars is generally less than 20m. In the case of slow running speed and short running distance, the drag chain can be used to reduce the wear of the cable. The mechanism is simple and the cost is low. It is a common cross-track flat in the workshop. The car is suitable for occasions with high frequency of use and low vehicle height.

Die Transportation Motorized Electric Transfer Cart 1


Technique Parameter of KPT Series Industrial Motorized Carts / Rail Wagon Platform For Die Transportation

Model KPT-2t KPT-5t KPT-10t KPT-16t KPT-20t KPT-25t KPT-30t KPT-40t KPT-50t KPT-63t KPT-80t KPT-100t KPT-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Die Transportation Motorized Electric Transfer Cart 2
