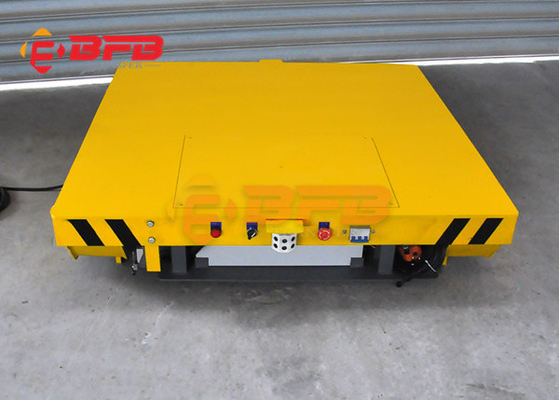

Steel Platform Dragged Cable Electric Transfer Cart 10 Ton

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE SGS ISO9001
Model Number KPT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 40-50 days as usual delivery,50-60days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 set/sets per year
Product Details
Material Q235 Color Customized
Application Industrial Field, Die Transportation Power Supply Dragged Cable
Running Speed 0-20m/min Running Distance According To Customers' Demand
Warranty 18 Months For Rail Transfer Trailer Port Qingdao/Tianjin/Shanghai
Table Material Steel Platform Parts Electric Control System, Driving System,steering System
Operation Type Hand Pendant + Remote Control
High Light

10 Ton Electric Transfer Cart

,

Steel Platform Electric Transfer Cart

,

Dragged Cable Electric Transfer Cart

Leave a Message
Product Description
10 Ton Transfer Trailer Cable Power, Custom Manufacture Flat Carts On Rails

Working Principle

10 Ton Transfer Trailer Cable Power, Custom Manufacture Flat Carts On Rails----it conducts AC380v directly into the electrical control system of the motorized transfer trailer to start, stop, go forward backforward and so on.The cart is powered by dragged cable which is laid on the ground. the cable line is placed between the two rails. The operation system is low voltage 36v power.





The cable powered transfer trailers transportation can be applied in the environment such as severe environment,anti-explosive, high temperature, etc. Simple structure and low cost make the trailer popular for workshop transportation. The cable powered transfer trailers transportation can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the cable powered transfer cars transportation needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.



Steel Platform Dragged Cable Electric Transfer Cart 10 Ton 0

Steel Platform Dragged Cable Electric Transfer Cart 10 Ton 1Steel Platform Dragged Cable Electric Transfer Cart 10 Ton 2




Technique Parameter of KPT Series Industrial Motorized Carts / Rail Wagon Platform For Die Transportation

Model KPT-2t KPT-5t KPT-10t KPT-16t KPT-20t KPT-25t KPT-30t KPT-40t KPT-50t KPT-63t KPT-80t KPT-100t KPT-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Steel Platform Dragged Cable Electric Transfer Cart 10 Ton 3
Steel Platform Dragged Cable Electric Transfer Cart 10 Ton 4
