Q235 Cable Powered Railway Track Trolley For Slab Handling 20m/Min

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE SGS ISO9001
Model Number KPT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 40-50 days as usual delivery,50-60days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 set/sets per year
Product Details
Material Q235 Application Industrial Field, Slab Handling
Power Supply Dragged Cable Powered Running Speed 0-20m/min
Running Distance According To Customers' Demand Warranty 24 Months For Railway Track Trolley
Port Qingdao/Tianjin/Shanghai Parts Electric Control System, Driving System,steering System
High Light

Slab Handling Railway Track Trolley

,

Cable Powered Railway Track Trolley Q235

,

20m/Min Electric Transfer Trolley

Leave a Message
Product Description

Cable Powered Railway Track Trolley For Slab Handling

Working Principle

Cable Powered Railway Track Trolley----it conducts AC380v directly into the electrical control system of the rail track trolley to start, stop, go forward backforward and so on.The railway track trolley is powered by dragged cable which is laid on the ground. the cable line is placed between the two rails. The operation system is low voltage 36v power.


Selection reference



This series of kpt series railway track trolley is suitable for sites with a running distance of less than 20m, a high frequency of use and a low trolley height. Due to the simple mechanism and low cost, it is a common and hot transfer trolley with a cross-span of the Interbay. Tows can be used to reduce cable wear in slower speeds. The running distance of this series of transfer trolleys should not be too long, generally less than 20m. In the case of slow running speed and short running distance, the drag chain can be used to reduce the wear of the cable. The mechanism is simple and the cost is low.


Technique Parameter

Model KPT-2t KPT-5t KPT-10t KPT-16t KPT-20t KPT-25t KPT-30t KPT-40t KPT-50t KPT-63t KPT-80t KPT-100t KPT-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

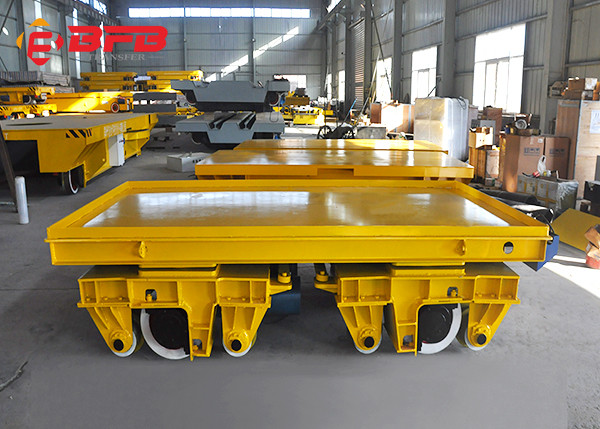

Cable Powered Railway Track Trolley For Slab Handling

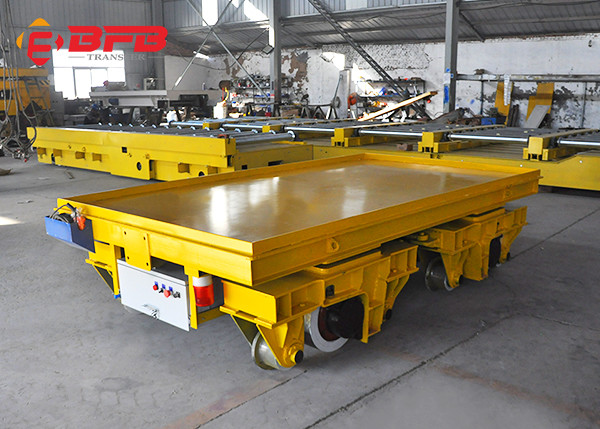

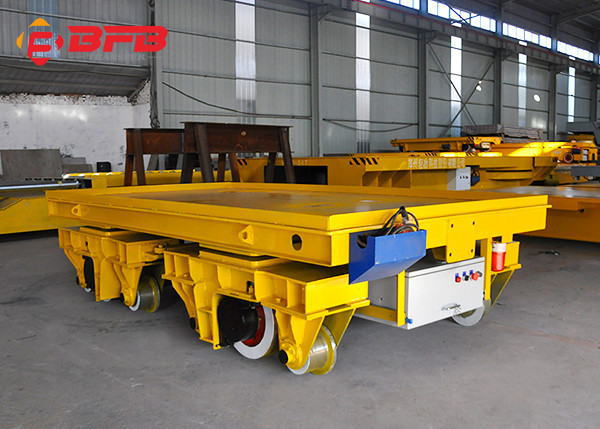

Cable Powered Railway Track Trolleys For Slab HandlingCable Powered Railway Track Trolleys For Slab Handling

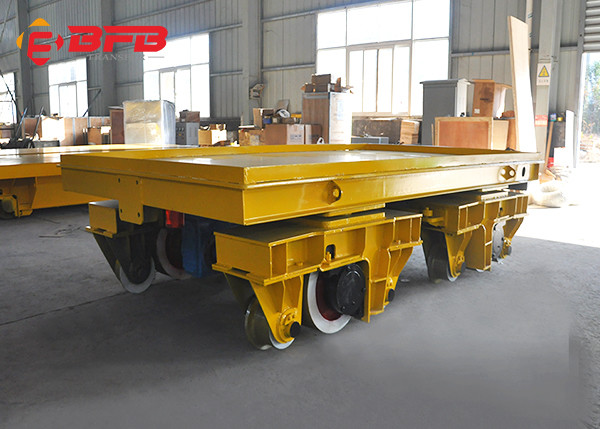

Cable Powered Rail Track Trolley For Slab Handling
