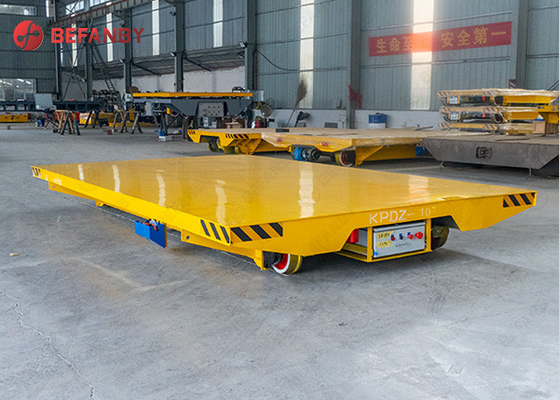

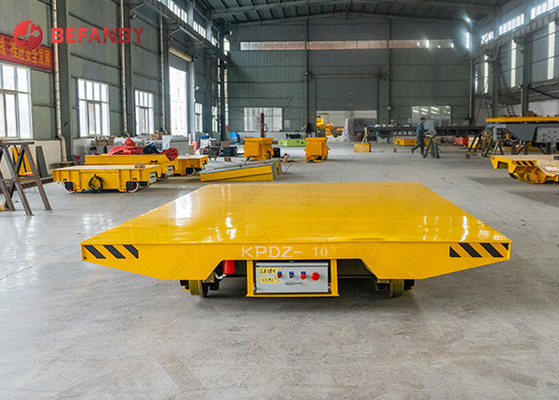

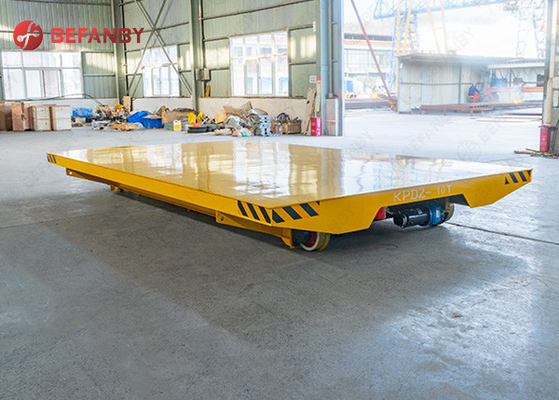

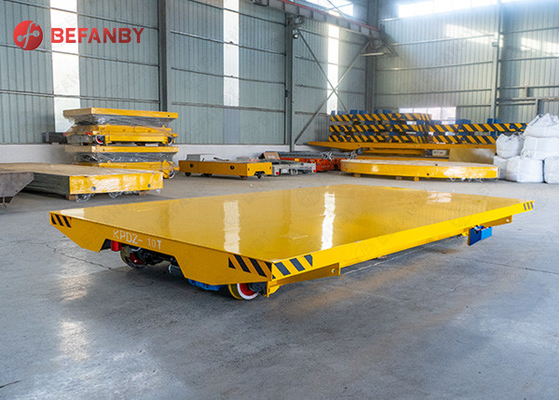

20 Ton Steerable Low Voltage Rail Transfer Cart

  • 20 Ton Steerable Low Voltage Rail Transfer Cart
  • 20 Ton Steerable Low Voltage Rail Transfer Cart
  • 20 Ton Steerable Low Voltage Rail Transfer Cart
  • 20 Ton Steerable Low Voltage Rail Transfer Cart
  • 20 Ton Steerable Low Voltage Rail Transfer Cart
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPD-15T
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The material transfer cat will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Running Speed 0-20m/min Warranty 12 Months
Load Capacity 15 Tons Application Industrial Field, Factory,warehouse,plant
Port Qingdao/Tianjin/Shanghai Color Customized
Power Supply Low Voltage Rail Power Operation Type Hand Pendent + Remote Control
High Light

Steerable Rail Transfer Cart

,

20 Ton Rail Transfer Cart

,

Low Voltage Rail Transfer Cart
Leave a Message
Product Description

20 Ton Steerable Low Voltage Rail Transfer Cart

Product Description

The cart adopts a design consisting of three parts: safety system, control system and power system, and also adopts the technology of low-voltage rail and insulated wheels. This innovative design not only effectively reduces the friction between the rail and the wheels, but also makes the vehicle more flexible in cornering situations.

First of all, the safety system is the core of this cart, which includes various safety equipment and control devices to ensure the safety of the cart during operation. The control system is responsible for monitoring and controlling various parameters of the cart, including speed, steering, etc., in order to maintain the stability of the cart. The power system provides the power the cart needs to operate normally.

Secondly, this innovative cart uses low-voltage rails and insulated wheels. It can better adapt to the operation of the wheel and reduce the friction between the track and the wheel. The insulated wheels use special materials to enable the wheels to better cooperate with the low-voltage rails, further reducing the degree of friction.

This cart can be used in turning situations. Normally, a cart needs to increase its steering angle when turning, which can easily lead to lateral slip and instability of the vehicle. The optimized design of this innovative cart makes the vehicle more flexible and stable when turning.





20 Ton Steerable Low Voltage Rail Transfer Cart30 Ton Steerable Low Voltage Rail Transfer Cart



Product Details



20 Tonne Steerable Low Voltage Railway Transfer Cart



Product Parameter



Model KPD-2T KPD-5T KPD-10T KPD-16T KPD-20T KPD-25T KPD-30T KPD-40T KPD-50T KPD-63T
Rated load(t) 2 5 10 16 20 25 30 40 50 63
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Heigth(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rai lnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 50
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power(kw) 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quantity(个) 1 1 1 1 1 1 1 1 1 1
Running distance 80 80 80 80 80 80 80 60 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Wight(t) 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50





Application



20 Ton Steerable Low Voltage Rail Transfer Trolley



Product Characteristics



20 Ton Steerable Low Voltage Rail Transport Carts



Advantage



20 Ton Remote Control Low Voltage Rail Transfer Cart



Shipping



20 Ton Steerable Low Voltage Rail Transfer Vehicle



Our Company



20 Ton Steerable Low Voltage Rail Handling Cart

BEFANBY Steerable Low Voltage Rail Transfer Cart

Factory Use Steerable Low Voltage Rail Transfer Cart
